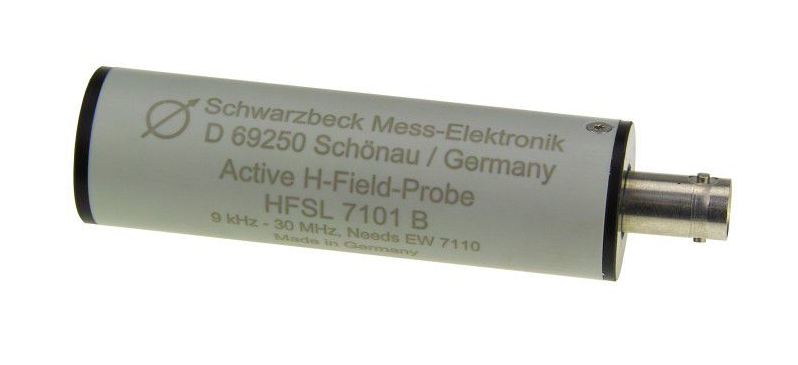

Schwarzbeck HFSL 7101 B Active Magnetic Field Probe (9 kHz – 30 MHz)

Nominal frequency range: 9 kHz – 30 MHz

Coaxial cable connector: 50 Ω BNC

Antenna factor for H-field strength: typ. 10 – 18 dB/µA/m

Antenna factor for fictitious E-field strength: typ. 61.5 – 69.5 dB/m

Max. field strength measuring range: 117 dBµA/m (0.7 A/m)

Displayed noise level at 1 MHz, QP-detector, 9 kHz – 6 dB bandwidth: 15 dBµA/m (6 µA/m)

Displayed noise level at 1 MHz, AV-detector, 9 kHz – 6 dB bandwidth: 10 dBµA/m (3.2 µA/m)

Displayed noise level at 100 kHz, QP-detector, 200 Hz – 6 dB bandwidth: 8 dBµA/m (2.5 µA/m)

Displayed noise level at 100 kHz, AV-detector, 200 Hz – 6 dB bandwidth: 5 dBµA/m (1.8 µA/m)

Frequency response: typ. ± 4 dB

Cable length: 2 m

Dimensions body with BNC connector: 25 × 100 mm

Weight: 142 g

DC separator: EW 7110

AC/DC adapter: ACDC 7110
