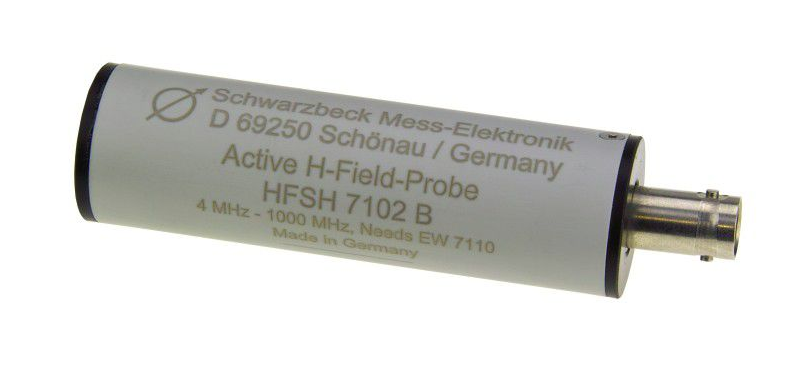

Schwarzbeck HFSH 7102 B Active Magnetic Field Probe (4 – 1000 MHz)

Frequency range: 4 – 1000 MHz

Nominal impedance: 50 Ω

Antenna factor for magnetic field: -4 dB/µA/m (30–300 MHz)

Antenna factor for fictitious E-field strength: +47.5 dB/m (30–300 MHz)

Max. field strength measuring range: 120 dBµA/m

Min. field strength measuring range: 5 dBµA/m

Displayed noise level at 4 MHz, QP-detector, 9 kHz – 6 dB bandwidth: 11 dBµV

Displayed noise level at 4 MHz, AV-detector, 9 kHz – 6 dB bandwidth: 5 dBµV

Frequency response: typ. ±6 dB

Housing material: PVC

Housing dimensions: 25 × 100 mm

Cable length: 2 m

Weight: approx. 140 g

Connector: BNC female

DC separator: EW 7110

AC/DC adapter: ACDC 7110
