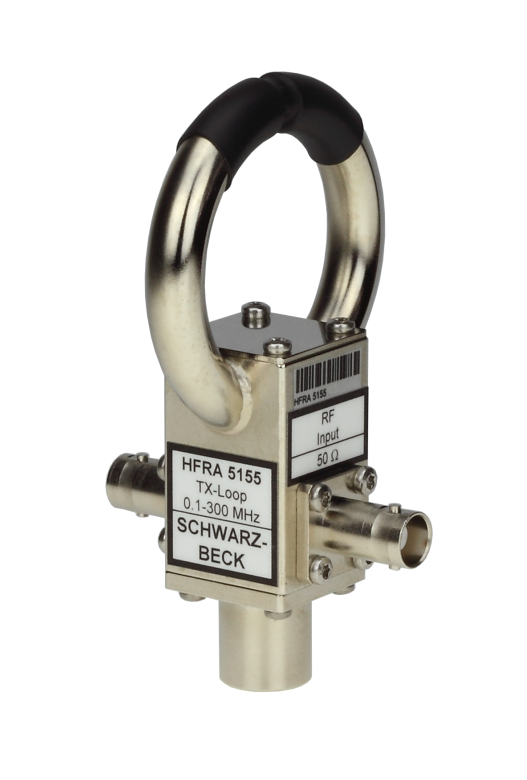

Schwarzbeck HFRA 5155 Passive Magnetic TX Loop Antenna (100 kHz ... 100 (300) MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelHFRA 5155
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency Range: 100 kHz ... 100 (300) MHz
Loop Diameter: 50 mm
Connector: BNC
Max. Input Power: 2 W
Impedance of Signal Generator or Power Amplifier: 50 Ω
Impedance of Voltage Probes connected to 10 Ω Monitor Output: 10 kΩ
Maximum Loop Current: 0.44 A
Maximum Monitor Voltage: 4.4 V
Mount (Camera Thread): 3/8"
Material: Brass, Nickel plated
Dimensions: 105 x 60 x 62 mm
Weight: 145 g
