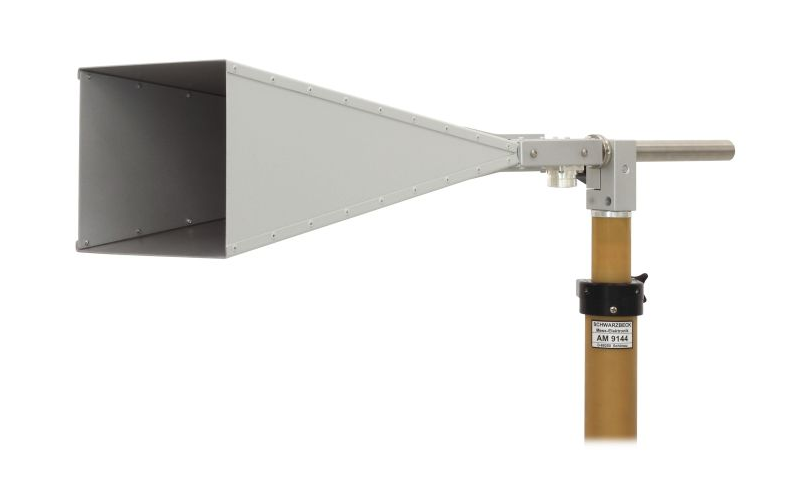

Schwarzbeck HA 9251-48 Standard Horn Antenna (4 - 8 GHz)

Frequency Range (nominal): 4 - 8 GHz, 7/16 Connector: 4 - 7.5 GHz

Frequency Range (useable): 3.7...8.5 GHz

Gain: ≈ 17-21 dBi

Antenna Factor: ≈ 25...28 dB/m

VSWR: typ. < 1.5

Front to Back Ratio: typ. > 27 dB

Half Power Beamwidth (E-Plane): 21° @ 4 GHz/ 14° @ 6 GHz/ 12° @ 8 GHz

Half Power Beamwidth (H-Plane): 22° @ 4 GHz/ 16° @ 6 GHz/ 13° @ 8 GHz

Connector: N, 7/16

Max. Peak Input Power: 5 kW

Mounting Threads: 22 mm Rohr/Tube

Dimensions: 492 x 164 x 224 mm

Weight: 1.6 kg

Material: Aluminium
