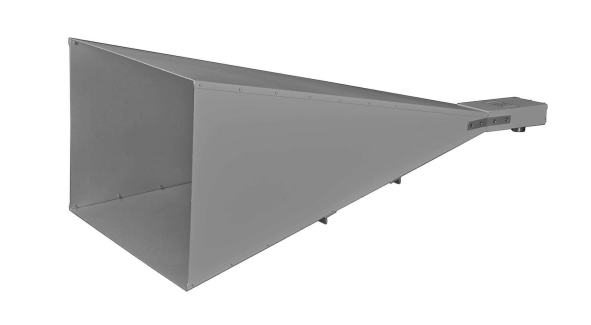

Schwarzbeck HA 9251-24 Standard Horn Antenna (2-4 GHz, 1.9-4.6 GHz)

Frequency Range (nominal): 2-4 GHz

Frequency Range (useable): 1.9-4.6 GHz

Gain: ≈ 17-20 dBi

Antenna Factor: 19...23 dB/m

VSWR: typ. < 1.5

Front to Back Ratio: typ. > 27 dB

Half Power Beamwidth (E-Plane): 17° @ 2 GHz/ 13° @ 3 GHz/ 11° @ 4 GHz

Half Power Beamwidth (H-Plane): 19° @ 2 GHz/ 14° @ 3 GHz/ 16° @ 4 GHz

Connector: 7/16

Max. Input Power: 2 kW (2 GHz)/ 1 kW (4 GHz)

Max. Peak Input Power: 10 kW

Mounting Threads: 3/8" , M12

Dimensions:325 x 445 x 965 mm

Weight: 5.6 kg

Material: Aluminium
