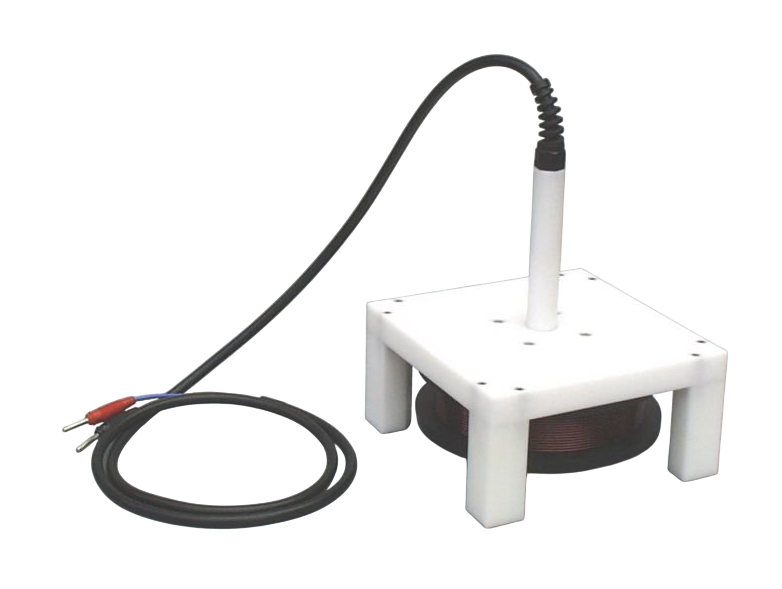

Schwarzbeck FESP 5133-1330 Circular Coil (0 – 20 (50) kHz, 2 mm)

Number of turns: 225

Wire diameter: 2 mm

Maximum coil current: 20 A

Max. magnetic field strength at 50 mm spacing: 17 kA/m

Magnetic field strength at 1 A coil current in 50 mm distance: 858.2 A/m

Required current for 1000 A/m in 50 mm distance: 1.165 A

Magnetic flux density at 1 A coil current in 50 mm distance: 1.078 mT

Conversion current–magnetic field strength: 180.66 dBpT / 58.67 dB/m

Mechanical dimensions: 190 × 190 × 290 mm

Terminals: 4 mm Banana

Length of connection cable: 3 m

Usable frequency range: 0 – 20 (50) kHz

Weight: 5.3 kg
