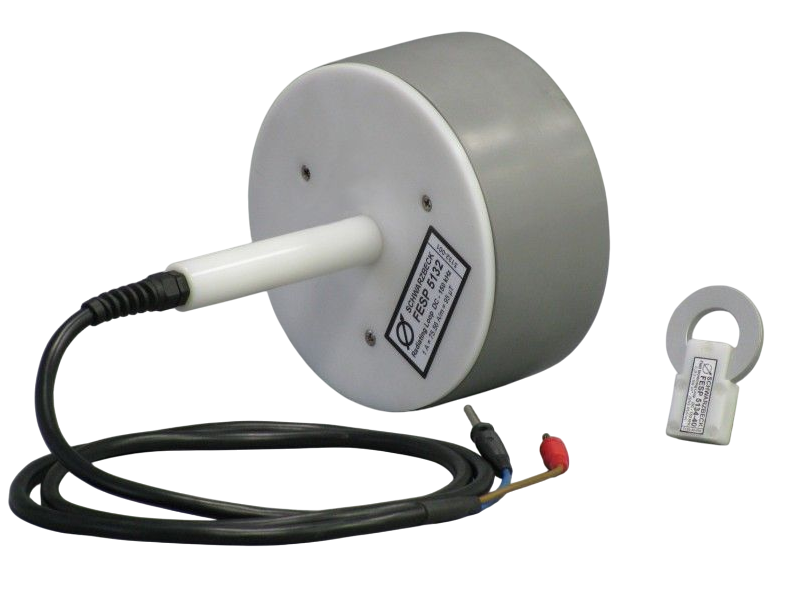

Schwarzbeck FESP 5132 Radiating Loop (1500 A/m, 5 min, 0 – 150 kHz)

Number of turns: 20

Wire diameter: 2 mm Cu (AWG 12)

Maximum Coil Current: 20 A, 5 min.

Nominal Coil Current: 10 A continuous

Maximum Magnetic Field Strength: 1500 A/m, 5 min.

Nominal Magnetic Field Strength: 750 A/m continuous

Magnetic Fieldstrength, 1 A Coil Current (with 50 mm distance ring): 75.56 A/m (95 µT)

Current required for 1 A/m (with 50 mm distance ring): 13.23 mA

Medium coil diameter: 120 mm

Spacing coil center to measurement plane: 50 mm

Mechanical Dimensions: 0.16 m × 0.25 m (0.3 m)

Terminals: 4 mm banana jacks

Usable Frequency Range: 0 – 150 kHz

Inductance: 80 µH

Resistance: 0.1 Ω

Weight: 1.2 kg
