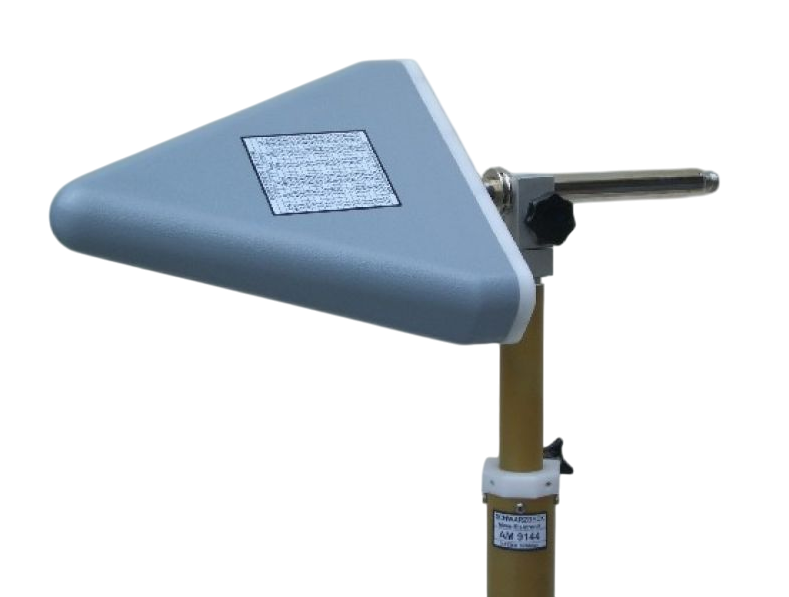

Schwarzbeck ESLP 9145 Microwave Log Periodic Antenna (1 - 18 GHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelESLP 9145
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Nominal Frequency range: 1 - 18 GHz
Useable Frequency range: 0.7 - 20 GHz
Connector: female 50 Ω N
Mounting tube: ϕ=22 mm, L=185 mm
Isotropic gain: typ. 6 dBi +/- 1.2 dB
Antenna Factor: 22 ... 50 dB/m
SWR typ.: < 2
Max. Input Power: 20 W
Half-Power Beamwidth (E-plane): 55° (70° - 40°)
Half-Power Beamwidth (H-plane): 85° (130° - 65°)
Dimensions: 500 x 240 x 40 mm
Weight: 900 g
