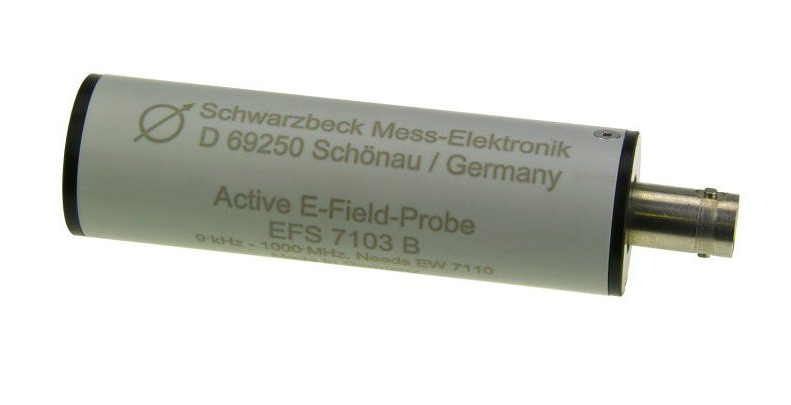

Schwarzbeck EFS 7103 B Active Electric Field Probe (9 kHz – 1000 MHz)

Frequency range: 9 kHz – 1000 MHz

Nominal impedance: 50 Ω

Antenna factor for electric field: typ. 25 dB/m

Max. field strength measuring range: 140 dBµV/m

Min. field strength measuring range: 40 dBµV/m

Displayed noise level, QP-detector, 9 kHz – 6 dB bandwidth: 36 dBµV/m

Displayed noise level, AV-detector, 9 kHz – 6 dB bandwidth: 30 dBµV/m

Frequency response: typ. ±4 dB (9 kHz – 500 MHz)

Housing material: PVC

Housing dimensions: 25 × 100 mm

Cable length: 2 m

Weight: approx. 140 g

Connector: BNC female

DC separator: EW 7110

AC/DC adapter: ACDC 7110
