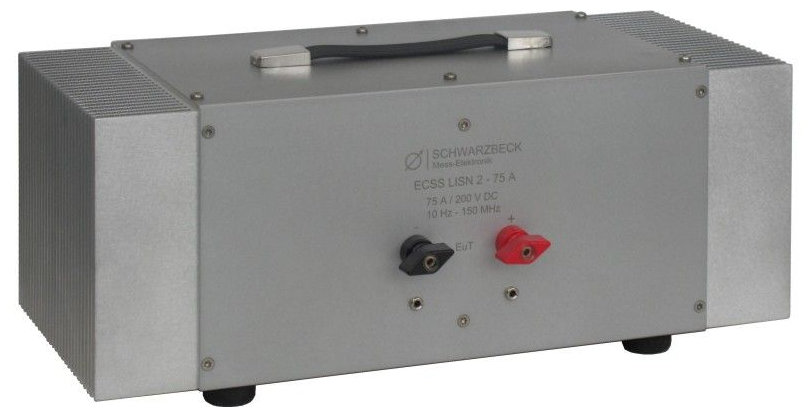

Schwarzbeck ECSS LISN 2 - 75A ECSS LISN 2 - 75A Netznachbildung (10 Hz – 100 MHz, 75 A)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelECSS LISN 2 - 75A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Nominal Frequency Range: 10 Hz – 100 MHz
Useable Frequency Range: 10 Hz – 150 MHz
Max. cont. current: 75 A
Max. current (limited time): 100 A
Max voltage (DC): 200 V
Impedance: (2 µH) ∥ 50 Ω (+/– 20%)
DC-Resistance mains–EUT: 100 mΩ
EuT connectors: Screw terminal M7 × 0.75 not unscrewable with 4 mm jacks
Dimensions (W × H × D): 440 × 162 × 196 mm
Weight: 9.5 kg
