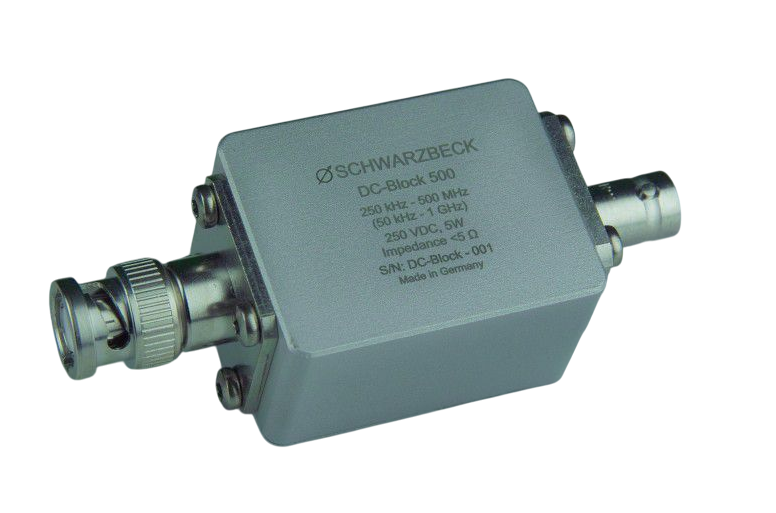

Schwarzbeck DC-Block 500 DC-blocking capacitor (250 kHz – 500 MHz)

Frequency range: 250 kHz – 500 MHz

Useable frequency range at -1 dB: 50 kHz – 1 GHz

Port 1: 50 Ω BNC jack

Port 2: 50 Ω BNC plug

Max. voltage line – ground: 250 V DC

Max. RF-Power: 5 W max.

Insertion loss Input – Output: < 0.42 dB

Series impedance (250 kHz – 500 MHz): < 5 Ω

Dimensions W × H × D: 90 mm × 28 mm × 35 mm

Weight: approx. 103 g
