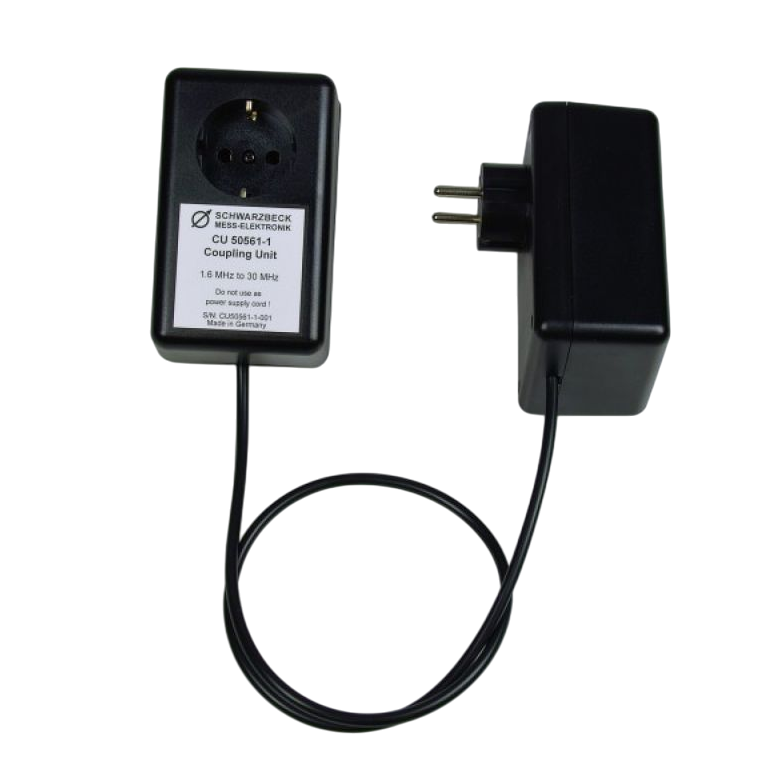

Schwarzbeck CU 50561-1 Coupling Unit (1.6 … 30 MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelCU 50561-1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: 1.6 ... 30 MHz
Symmetrical attenuation: 40 dB ±1.5 dB (@ 25 Ω)
Max RF voltage: 10 V
Dielectric strength each wire: >1000 VDC
Test voltage between lines: >1000 VDC
Max. power rating: 1000 VA
Housing material: Kunststoff (plastic)
Housing dimensions: 68 × 112 × 53 mm
Cable length: ~800 mm
Weight: ~310 g
Connector Mains plug: CEE 7/7
Connector Mains jack: CEE 7/4
