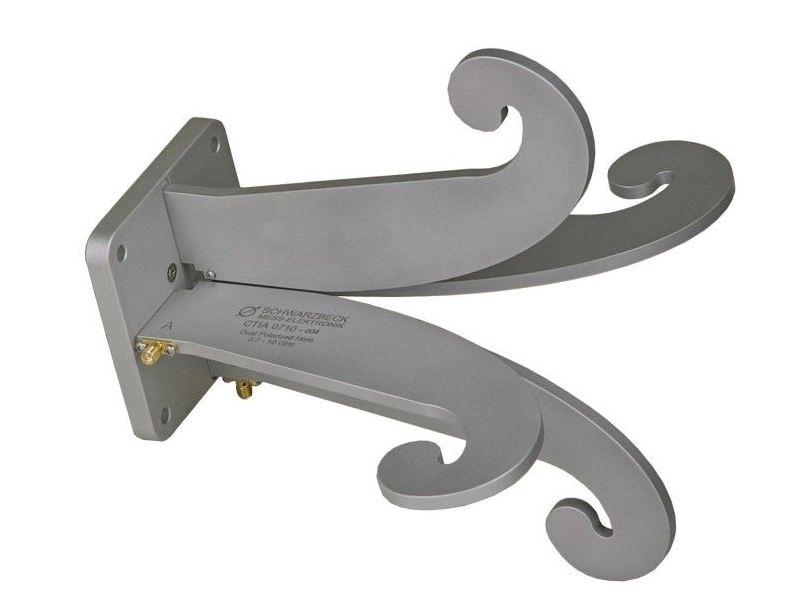

Schwarzbeck CTIA 0710 Dual polarised horn antennas (0.7…10 GHz)

Nominal Frequency Range: 0.7…10 GHz

Isotropic Gain: 5…13 dBi (f > 1 GHz)

Antenna Factor: 25…39 dB/m (f > 1 GHz)

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR typical: 2

Standing Wave Ratio SWR max.: < 3 (f > 1.25 GHz)

Port Isolation: typ. > 30 dB

Cross Polarisation: typ. > 25 dB

3 dB Beamwidth (E-Plane): 40–80°

3 dB Beamwidth (H-Plane): 40–140°

Max. Input Power: 100 W (intermittent), 50 W (continuous)

Connector: SMA female

Mounting: Flange plate with 4 holes Ø 6.2 mm in square, drilling spacing 75 mm

Width x Length x Height:: 235 × 200 × 235 mm

Weight: 0.84 kg
