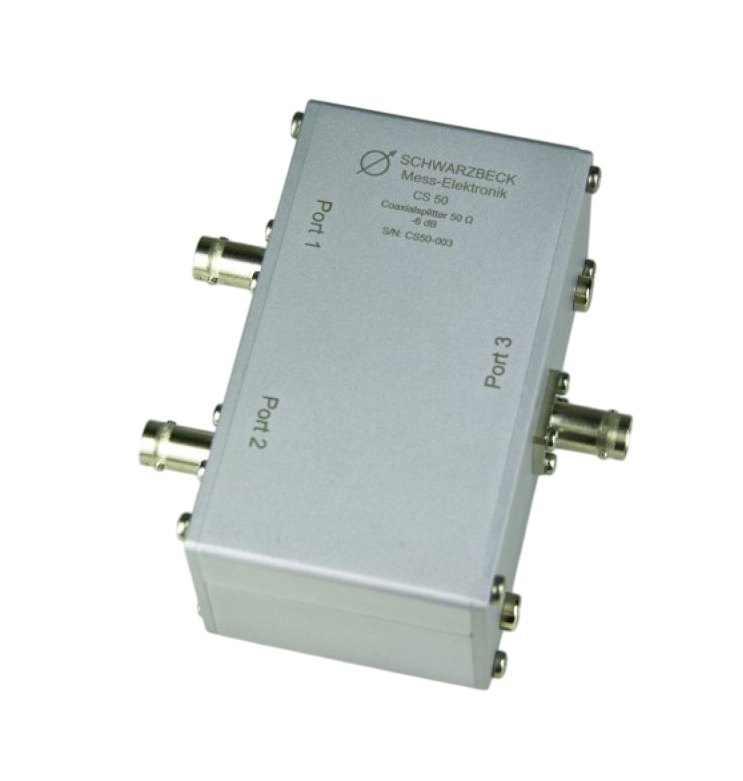

Schwarzbeck CS-50 Unsymmetrical Splitter (DC … 30 MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelCS-50
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: DC … 30 MHz
Usable frequency range (typical): DC … > 50 MHz
Insertion loss: 6 dB ± 0.2 dB
Frequency response (flatness): < ±0.1 dB
Nominal impedance: 50 Ω
Max. input power: 1 W
VSWR: < 1.1 :1 @ 30 MHz
Housing material: Aluminium
Housing dimensions (L × W × H): 125 mm × 104 mm × 50 mm
Weight: approx. 280 g
Terminals: BBNC-Plug
Ground connectors: Bottom of case and 4 mm laboratory jack
