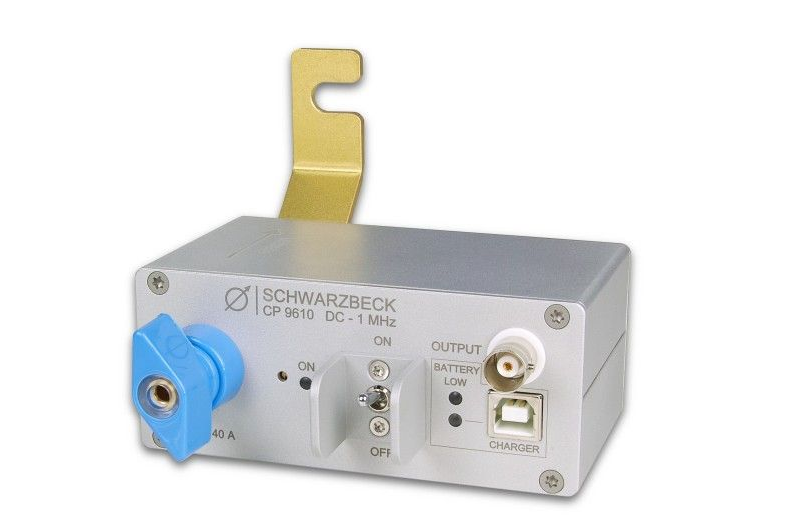

Schwarzbeck CP 9610 Current sensor (DC – 1 MHz, -40 A … +40 A)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelCP 9610
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency Range: DC – 1 MHz
Output Connector: BNC (1 MΩ)
Current Sensing Range: -40 A … +40 A
Nominal conversion factor: 50 mV/A
Internal Conductor Resistance: < 3 mΩ
Typical Output Error: ±3 %
Dimension: 105 × 44 × 115 mm
Typical Operation Time: 24 h
EuT Connectors: Wing terminals
Power Supply: 3.7 V, 2.6 Ah Lithium Ion
Weight (incl. Battery): 430 g
