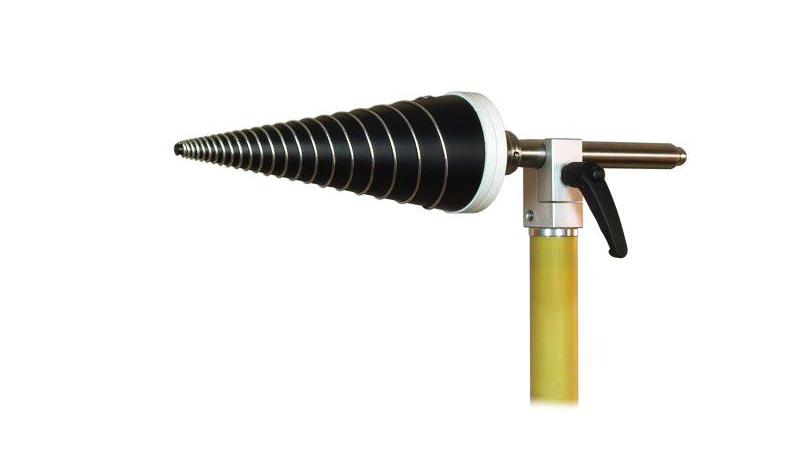

Schwarzbeck CLSA 0110 - LHCP Conical Logarithmic Spiral Antenna (1 - 10 GHz)

Left hand circular polarisation

Nominal frequency range: 1 - 10 GHz

Useable frequency range: 0.8 - 11 GHz

Connector: N female

Mounting tube: L = 20 cm, d = 22 mm

Length total: L = 47 cm

Diameter: D = 92 mm

Isotropic gain: typ. -4 ... +6 dBic

Antenna Factor: typ. 25 ... 55 dB/m

SWR typ.: 1.5 - 3.5

Axial ratio: typ. < 1 dB (1 - 6 GHz), typ. < 2 dB (6 - 10 GHz)

Front to back ratio: < -20 dB (1.5 - 8 GHz)

Rejection of the opposite polarisation direction: < -20 dB (1 - 6 GHz)

Max. input power (cw): 60 W

Max. peak input power: 120 W

Half-power beamwidth: 60° - 125°

Weight: 0.5 kg
