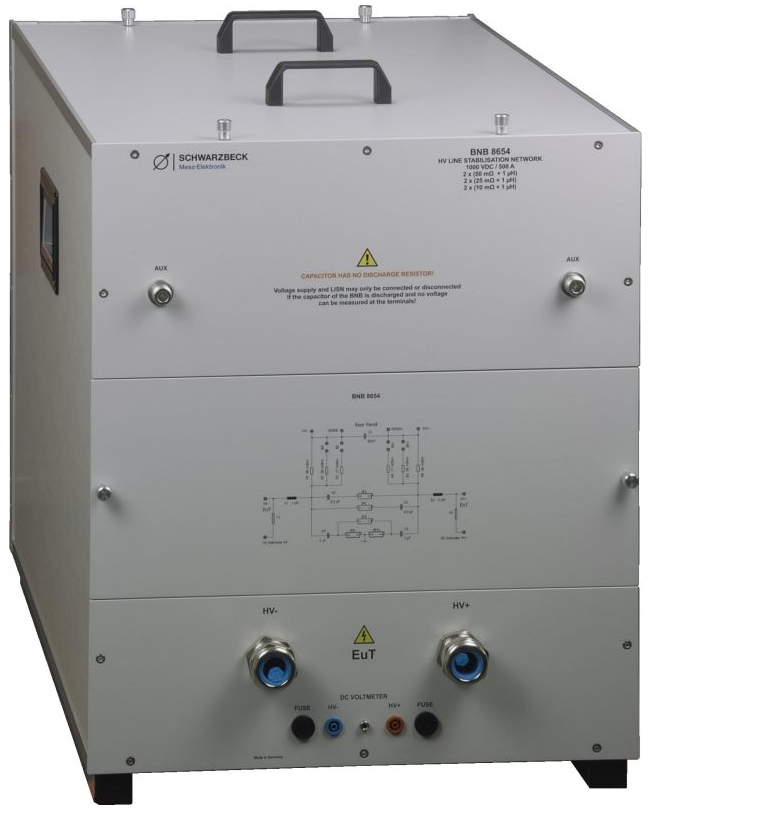

Schwarzbeck BNB 8654 HV Line Stabilisation Network (1000 VDC)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelBNB 8654
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max. voltage: 1000 VDC
Max. cont. current: 500 A
Max. current (limited time):
550 A / 2 × 50 mΩ
1100 A / 2 × 25 mΩ
1600 A / 2 × 10 mΩ
Impedance: 2 × (Rint in series with 1 µH) (Rint = 50 / 25 / 10 mΩ)
Self-inductance: 0.2 µH
LISN inductance: 2 × 1 µH
Weight: 71 kg
Dimensions (W × H × D): 446 mm × 535 mm × 770 mm
