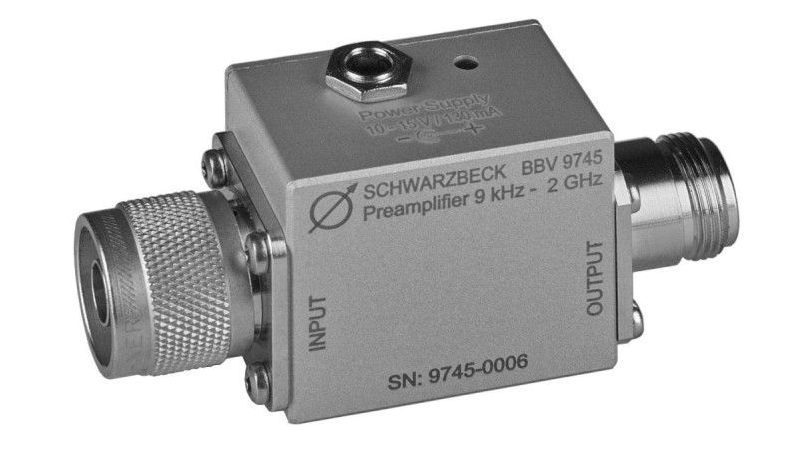

Schwarzbeck BBV 9745 Broadband Preamplifier (9 kHz – 2 GHz, +30 dB)

Frequency range (nominal): 9 kHz – 2 GHz

Noise figure: typ. 2.5 dB (1.0 GHz)

Gain: typ. +30 dB

Amplitude flatness: < ±3 dB

1 dB compression point at input: > –20 dBm (87 dBµV)

Impedance: 50 Ω

VSWR input / output: < 2 : 1

Ambient temperature: –10° … +60°C

Power supply: External +10 – 15 V / 120 mA

Coaxial power connector: 5.5 mm / 2.5 mm

Current consumption: < 120 mA

Material of the housing: Aluminium

Housing dimensions: 42 × 35 × 27 mm

Overall dimensions: 82 × 38 × 27 mm

Weight: 150 g
