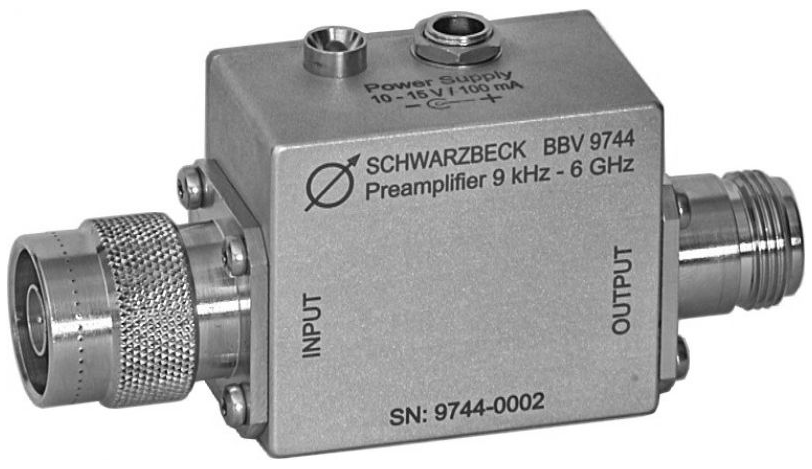

Schwarzbeck BBV 9744 Broadband Preamplifier (9 kHz – 6 GHz, +28 dB)

Frequency range (nominal): 9 kHz – 6 GHz

Noise figure: typ. 2.5 dB (1.0 GHz)

Gain: typ. +28 dB

Amplitude flatness: typ. < ±3 dB

1 dB compression point at input: > –20 dBm (87 dBµV)

Impedance: 50 Ω

VSWR input / output typ.: < 2 : 1

Ambient temperature: –10° … +60°C

Power supply: External +10 – 15 V / 120 mA

DC connector: 5.5 mm / 2.5 mm

Current consumption: < 120 mA

Material of the housing: Aluminium

Housing dimensions: 45 × 38 × 27 mm

Overall dimensions: 88 × 41 × 27 mm

Weight: 160 g
