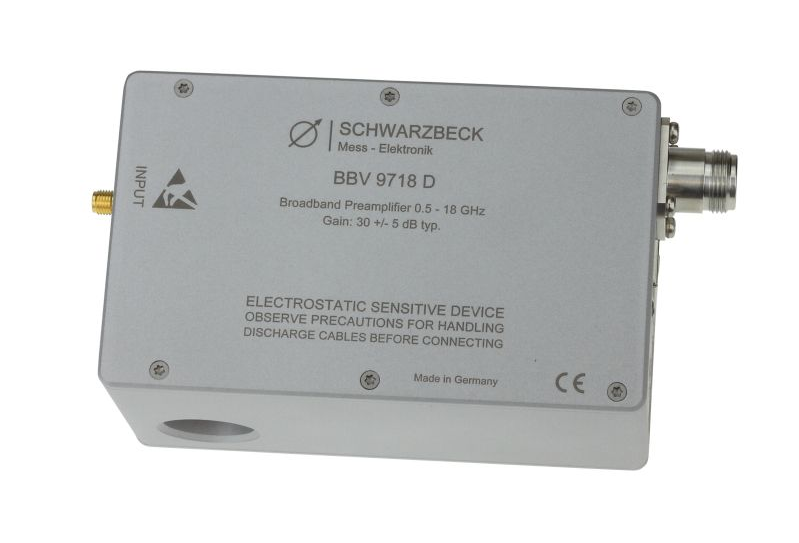

Schwarzbeck BBV 9718 D Microwave Broadband Amplifier (1 – 18 GHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelBBV 9718 D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Nominal Frequency range: 1 – 18 GHz
Useable Frequency range: 0.5 – 20 GHz
Connectors: 50 Ω N / SMA
Mounting tube: Ø 22 mm
Gain: typ. 30 dB ± 5 dB
SWR typ.: < 2
Max. Input Power: –10 dBm (97 dBµV)
1 dB Compression (at output): See last page
Noise Figure: 2 dB
Power Supply: 3.7 V, 3.1 Ah Lithium Ion
Typical Operation Time: 8 h
Dimensions: 155 × 80 × 67 mm
Weight: ~ 1 kg
