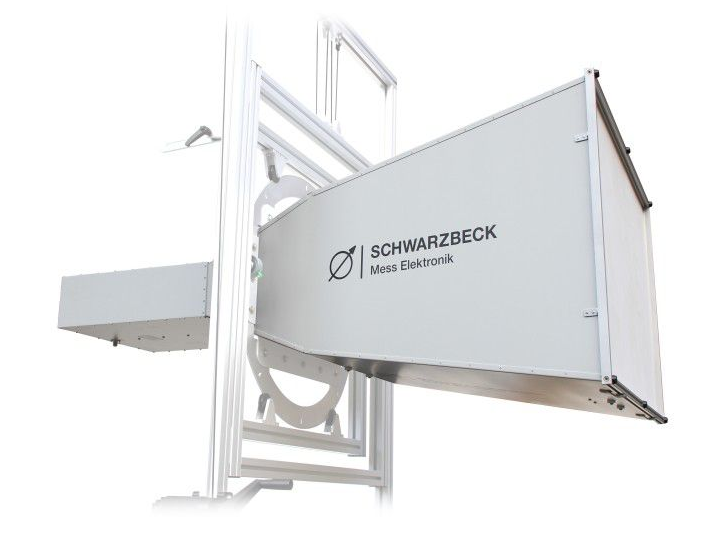

Schwarzbeck BBHA 9120 K High Gain Horn Antenna (400 MHz - 1.6 GHz)

Frequency Range: 400 MHz - 1.6 GHz

Isotropic Gain: 11 - 20 dBi (450 MHz < f < 1.6 GHz) @ 1 m Ap.

Antenna Factor: 12 - 20 dBi @ 1 m Ap.

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR max.: < 2.5 (450 MHz < f < 1.6 GHz)

Standing Wave Ratio SWR typical: < 1.5

Polarisation: linear

Max. Input Power: 1 kW @ 1 GHz/0.8 kW @ 1.5 GHz, N-Connector female

Max. Input Power (option): 1.7 kW @ 1 GHz/1.4 kW @ 1.5 GHz, Option: 7/16 Connector female

3 dB Beamwidth E-plane: 19° - 35° (0.9 - 1.5 GHz)

3 dB Beamwidth H-plane: 18° - 33° (0.9 - 1.5 GHz)

Length x Width x Height: 1.85 x 1.1 x 0.8 m

Weight: 32.5 kg

Mounting: Flange
