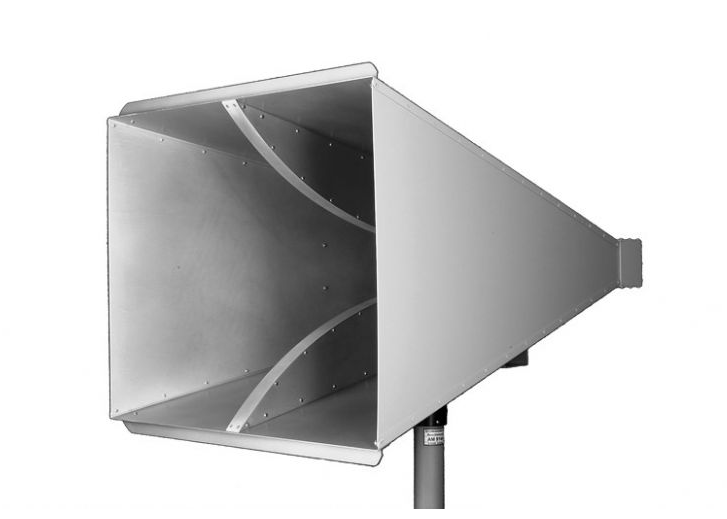

Schwarzbeck BBHA 9120 G Broadband Horn Antennas (400 MHz…2.8 GHz)

Nominal Frequency Range: 400 MHz…2.8 GHz

Isotropic Gain (Farfield): 8 dBi…18 dBi

Antenna Factor (Farfield): 14…32 dB/m

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR typical: 2

Standing Wave Ratio SWR max.: 3.5

Front to Back Ratio: typ. > 25 dB

Cross Polarisation: typ. > 25 dB

3 dB Beamwidth typ. (E-Plane): 45°

3 dB Beamwidth typ. (H-Plane): 45°

Max. Input Power: 3 kW @ 400 MHz / 1.5 kW @ 2 GHz

Connector: 7-16 connector female

Center Mount: 3/8", M12

Width × Length × Thickness: 550 × 990 × 460 mm

Weight: 10 kg

Recommended Accessories: AM 9144 Mast
