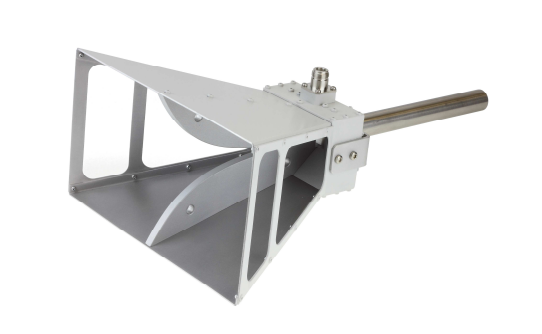

Schwarzbeck BBHA 9120 D Broadband Horn Antennas (1 GHz … 18 GHz, 800 MHz … 18 GHz)

Nominal Frequency Range: 1 GHz … 18 GHz

Usable Frequency Range: 800 MHz … 18 GHz

Isotropic Gain: 5 … 17 dBi

Antenna Factor: 25 … 44 dB/m

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR typical: ≈ 1.5

Front to Back Ratio: > 25 dB (f > 1.3 GHz)

Cross Polarisation: > 25 dB (1 GHz … 18 GHz)

3 dB Beamwidth typ. (E-Plane): 90° – 8°

3 dB Beamwidth typ. (H-Plane): 60° – 7°

 Connector: N-Connector female

Mount: 22 mm Tube, Indexing Ring

Width × Length × Thickness: 250 × 195 (408) × 142 mm

Weight: 1.4 kg

    Datasheet
