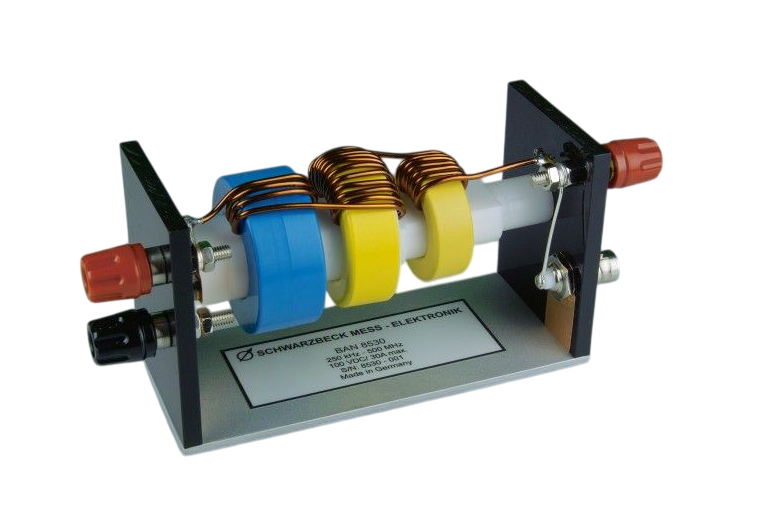

Schwarzbeck BAN 8530 Broadband Artificial Network (250 kHz – 500 MHz, 8 A – 30 A)

Frequency range: 250 kHz – 500 MHz

Nominal range of use: 8 A – 30 A

Line type: 1 wire

DuT/AE-connectors: Binding posts for 6 mm hook type cable lugs / banana jacks

Max. voltage line – ground: 100 V DC

Max. line current: 30 A DC

Measuring port: 50 Ω BNC

max. RF-Power at BNC-Port: 5 W max.

Decoupling EuT or BNC to AE-Port: 250 kHz – 500 MHz > 20 dB

Series impedance:

250 kHz – 1 MHz > 200 Ω

1 MHz – 150 MHz > 400 Ω

150 MHz – 250 MHz > 200 Ω

250 MHz – 500 MHz > 200 Ω

Dimensions W × H × D: 160 mm × 68 mm × 50 mm

Weight: Ca. 385 g
