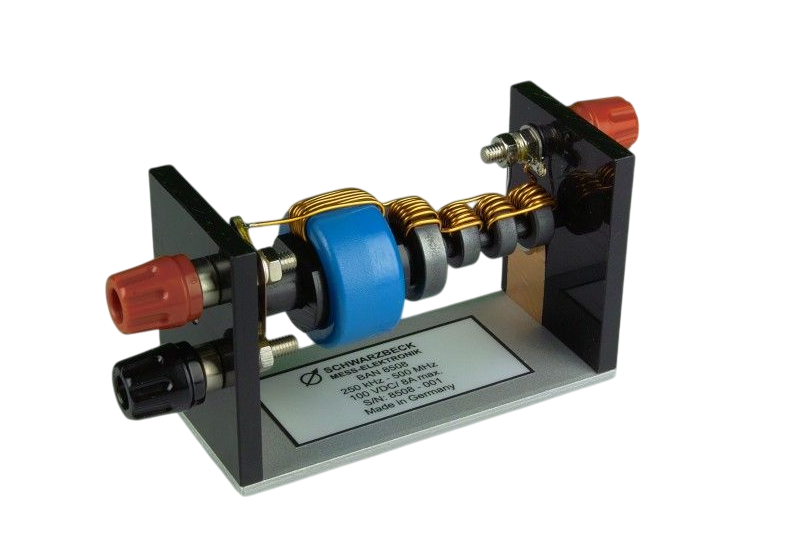

Schwarzbeck BAN 8508 Broadband Artificial Network (250 kHz – 500 MHz, 2 A – 8 A)

Frequency range: 250 kHz – 500 MHz

Nominal range of use: 2 A – 8 A

Line type: 1 wire

DuT/AE-Connector: Binding posts for 6 mm hook type cable lugs / banana jacks

Max. voltage line – ground: 100 V DC

Max. line current: 8 A DC

Measuring port: 50 Ω BNC

max. RF-Power at BNC-Port: 5 W max.

Decoupling EuT or BNC to AE-Port:

0.25 MHz to 1 MHz > 20 dB

1 MHz to 500 MHz > 35 dB

Series impedance measured from EuT side:

0.25 MHz to 0.5 MHz > 200 Ω

0.50 MHz to 250 MHz > 200 Ω

250 MHz to 500 MHz > 200 Ω

Dimensions W × H × D: 128 mm × 54 mm × 41 mm

Weight: Ca. 160 g

 Datasheet
