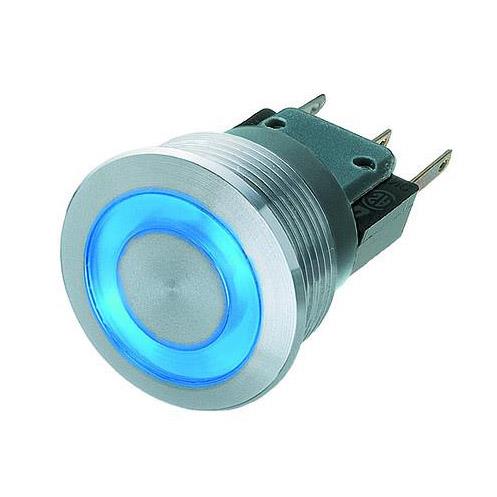

Schurter 1241.6634.1112000B Standard Switches MSM22 Switch MO NX SPDT 100mA RI 0GN S0
ManufacturerSchurter(View more products from this manufacturer)
Model1241.6634.1112000B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Actuator: Round
Diameter: 26 mm
IP Rating: IP40
Lamp Type: LED
Illuminated: Illuminated
Unit Weight: 31.180 g
Contact Form: SPDT
Current Rating: 100 mA
Mounting Style: PCB Mount
Switch Function: ON - (OFF), OFF - (ON)
Housing Material: Stainless Steel
Actuator Material: Stainless Steel
Termination Style: PC Pin
Voltage Rating DC: 30 VDC
Illumination Color: Green
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
