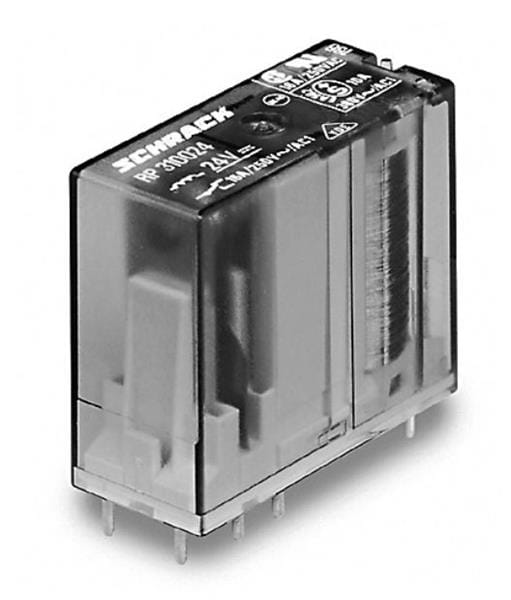

Schrack - TE Connectivity RP714012 Low Power Power PCB Relay 1CO RPII/1 16A 12VDC
ModelRP714012
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.6 mm
Height: 25.5 mm
Length: 29 mm
Coil Type: Non-Latching
Coil Voltage: 12 VDC
REACH - SVHC: Details
Mounting Style: Through Hole
Coil Resistance: 270 Ohms
Contact Material: Silver Nickel (AgNi)
Power Consumption: 500 mW
Switching Voltage: 400 VAC
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Contact Termination: Solder Pin
Contact Current Rating: 16 A
