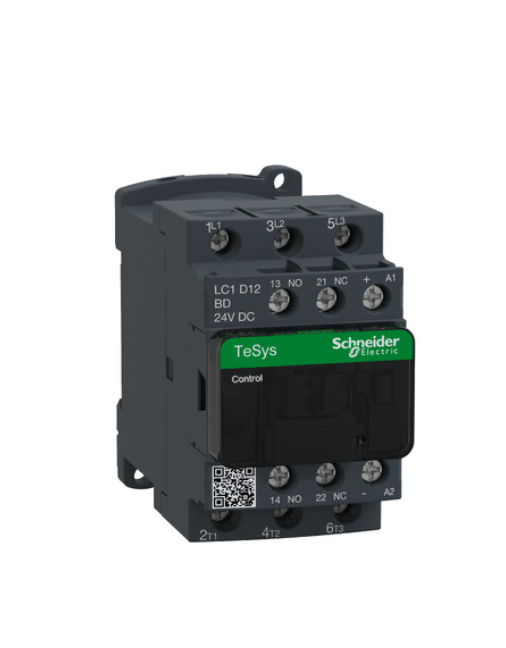

SCHNEIDER LC1D12BD Contactor (3P(3NO), AC-3/3e, <=440V, 12A)

Contactor application:

Resistive load

Motor control

Utilisation category

AC-1

AC-4

AC-3

AC-3e

Poles description: 3P

[Ue] rated operational voltage:

Power circuit: <= 690 V AC 25...400 Hz

Power circuit: <= 300 V DC

[Ie] rated operational current

25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit

12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

[Uc] control circuit voltage: 24 V DC

Complementary

Motor power kW:

3 kW at 220...230 V AC 50/60 Hz (AC-3)

5.5 kW at 380...400 V AC 50/60 Hz (AC-3)

5.5 kW at 415...440 V AC 50/60 Hz (AC-3)

7.5 kW at 500 V AC 50/60 Hz (AC-3)

7.5 kW at 660...690 V AC 50/60 Hz (AC-3)

3.7 kW at 400 V AC 50/60 Hz (AC-4)

3 kW at 220...230 V AC 50/60 Hz (AC-3e)

5.5 kW at 380...400 V AC 50/60 Hz (AC-3e)

5.5 kW at 415...440 V AC 50/60 Hz (AC-3e)

7.5 kW at 500 V AC 50/60 Hz (AC-3e)

7.5 kW at 660...690 V AC 50/60 Hz (AC-3e)

Motor power hp:

0.5 hp at 115 V AC 50/60 Hz for 1 phase motors

2 hp at 230/240 V AC 50/60 Hz for 1 phase motors

3 hp at 200/208 V AC 50/60 Hz for 3 phases motors

3 hp at 230/240 V AC 50/60 Hz for 3 phases motors

7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors

10 hp at 575/600 V AC 50/60 Hz for 3 phases motors

Pole contact composition: 3 NO

Protective cover: With

[Ith] conventional free air thermal current:

25 A (at 60 °C) for power circuit

10 A (at 60 °C) for signalling circuit

Auxiliary contact composition: 1 NO + 1 NC

Auxiliary contacts type

type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1

type mirror contact 1 NC conforming to IEC 60947-4-1

Signalling circuit frequency: 25...400 Hz

Minimum switching voltage: 17 V for signalling circuit

Minimum switching current: 5 mA for signalling circuit

Insulation resistance: > 10 MOhm for signalling circuit

Non-overlap time

1.5 ms on de-energisation between NC and NO contact

1.5 ms on energisation between NC and NO contact

Mounting support

Plate

Rail
