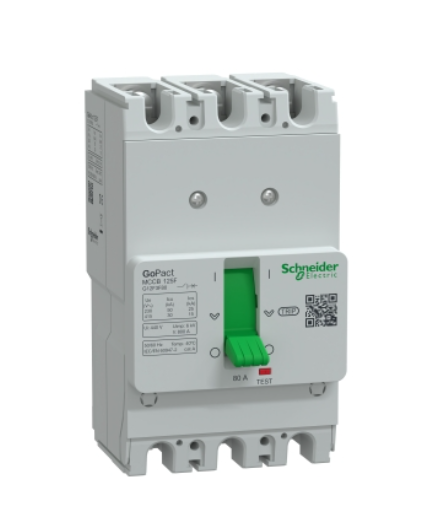

SCHNEIDER G12F3F80 Circuit Breaker, GoPact MCCB (3P, 80A, 30kA)

Operating voltage (Ue): 380~415V

Frequency: 50/60Hz (2 operating frequencies switching per minute)

Number of poles: 3P

Rated current (Ie): 80A

[Uimp] rated impulse withstand voltage: 6kV

[Ui] rated insulation voltage: 440V

Short circuit breaking capacity (Icu): 30kA

Trip unit: Thermal trip (TMD)

Control type: Fixed thermal protection

Protection rating: IP20

Mechanical durability: 30,000 cycles

Electrical durability: 8,000 cycles at 415V

Operating temperature: -20 ~ 55ºC

Storage temperature: -35 ~ 85ºC

Product dimensions: 130 x 75 x 60 (mm)

Product weight: 0.7 Kg
