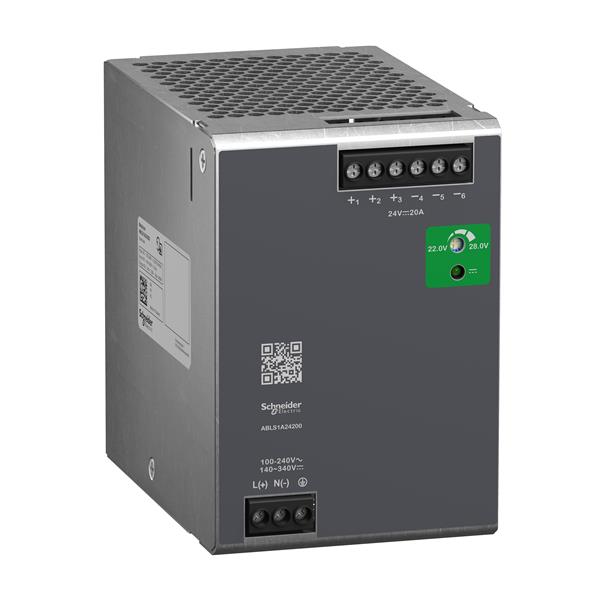

SCHNEIDER ABLS1A24200 Switching Supplies Regulated Power Supply, 100-240V AC, 24V 20 A, single phase, Optimized

Width: 85.6 mm (3.37 in)

Height: 123.7 mm (4.87 in)

Length: 128.5 mm (5.059 in)

Output Power: 480 W

Input Voltage: 100 VAC to 240 VAC, 140 VDC to 340 VDC

Mounting Style: DIN Rail Mount

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
