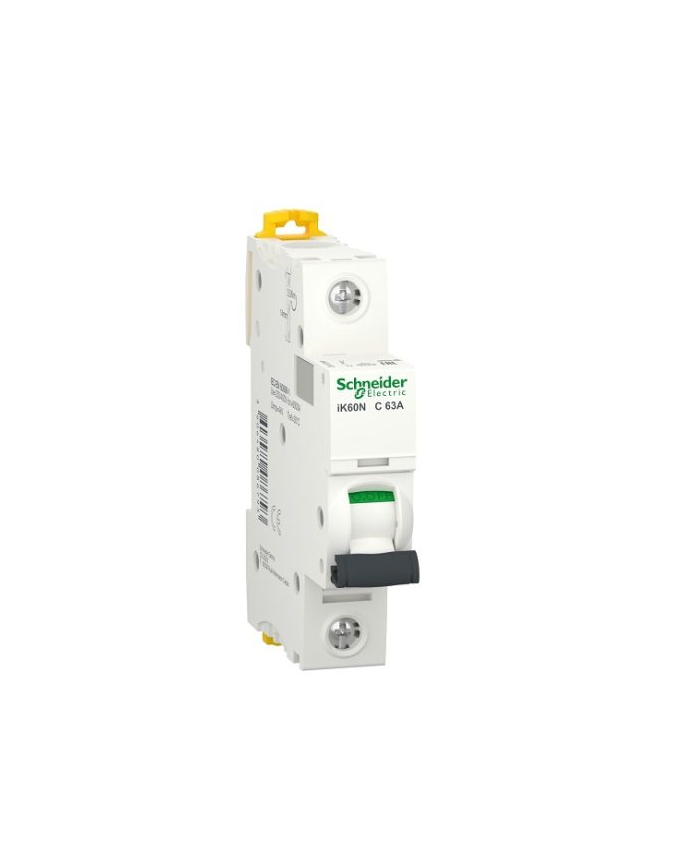

SCHNEIDER A9K24163 Miniature Circuit Breaker (1P, 63 A)

Poles description: 1P

Number of protected poles: 1

[In] rated current: 63 A at 30 °C

Network type: AC

Trip unit technology: Thermal-magnetic

Curve code: C

Breaking capacity: 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1

Suitability for isolation: Yes conforming to EN/IEC 60898-1

Standards: EN/IEC 60898-1

Complementary

Network frequency: 50/60 Hz

Magnetic tripping limit: 5...10 x In

[Ics] rated service breaking capacity: 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz

Limitation class: 3 conforming to EN/IEC 60898-1

[Ui] rated insulation voltage: 440 V AC 50/60 Hz conforming to EN/IEC 60898-1

[Uimp] rated impulse withstand voltage: 4 kV conforming to EN/IEC 60898-1

Contact position indicator: No

control type: Toggle

local signalling: ON/OFF indication

Mounting mode: Clip-on

Mounting support: DIN rail

9 mm pitches: 2

Height: 85 mm

Width: 18 mm

Depth: 78.5 mm

Net weight: 100 g

Mechanical durability: 20000 cycles

Electrical durability: 10000 cycles

Locking options description

Padlocking device: Connections - terminals

Tunnel type terminal (top or bottom) 1…35 mm² rigid

Tunnel type terminal (top or bottom) 1…25 mm² flexible

Wire stripping length: 14 mm for top or bottom connection

Tightening torque: 3.5 N.m top or bottom

Earth-leakage protection: Without

Environment

IP degree of protection

IP20 conforming to IEC 60529

Pollution degree

2 conforming to EN/IEC 60898-1

Overvoltage category: II

ambient air temperature for operation: -25…60 °C

Ambient air temperature for storage: -40…85 °C
