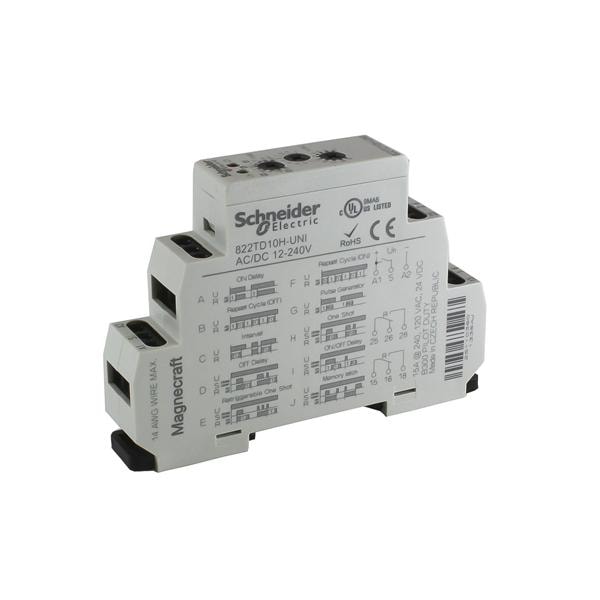

Schneider Electric Relays 822TD10H-UNI Timing Relays 822 Time Delay Rly DPDT, 15 Amp Rating

Features: B - Repeat Cycle (Starting Off), C - Interval (Power On), D - Off Delay (S Break), E - Retriggerable One Shot, F - Repeat Cycle (Starting On), G - Pulse Generator, H - One Shot, I - On/Off Delay (S Make/Break), J - Memory Hold (S Make), A - On Delay (Power On)

IP Rating: IP20

Unit Weight: 69 g

Contact Form: DPDT (2 Form C)

Display Type: LED

Power Rating: 3 VA/1.7 W

Timing Range: 10 ms to 10 days

Contact Rating: 15 A

Contact Material: Silver Alloy

Termination Style: Quick Connect Terminal

Relay Contact Form: 2 Form C (DPDT-NO, NC)

Operating Supply Voltage: 12 V to 240 V
