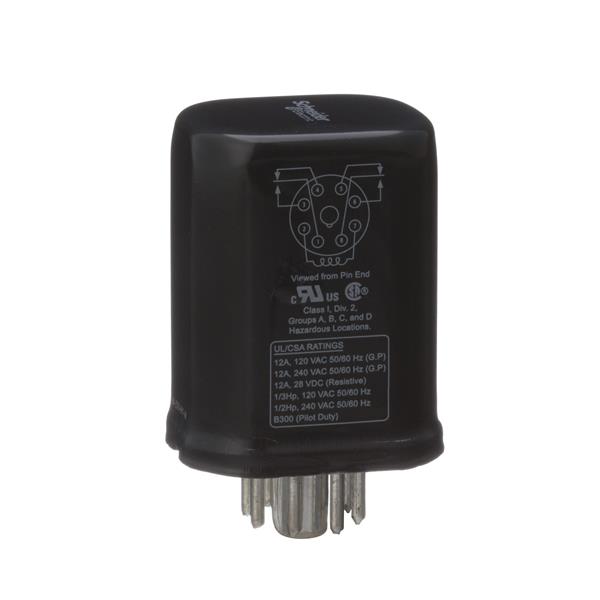

Schneider Electric Relays 750XBXH-240A Midget Power
Model750XBXH-240A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 36.5 mm
Height: 41.2 mm
Length: 52.5 mm
Coil Type: Non-Latching
IP Rating: IP40
Coil Current: 12 A
Coil Voltage: 240 VAC
Contact Form: DPDT (2 Form C)
Contact Rating: 12 A at 240 VAC
Mounting Style: Socket
Coil Resistance: 7.2 kOhms
Coil Termination: Plug Pin
Contact Material: Silver (Ag)
Power Consumption: 2 VA
Switching Voltage: 240 VAC, 28 VDC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Termination: Plug Pin
Contact Current Rating: 12 A
Maximum Switching Current: 12 A
