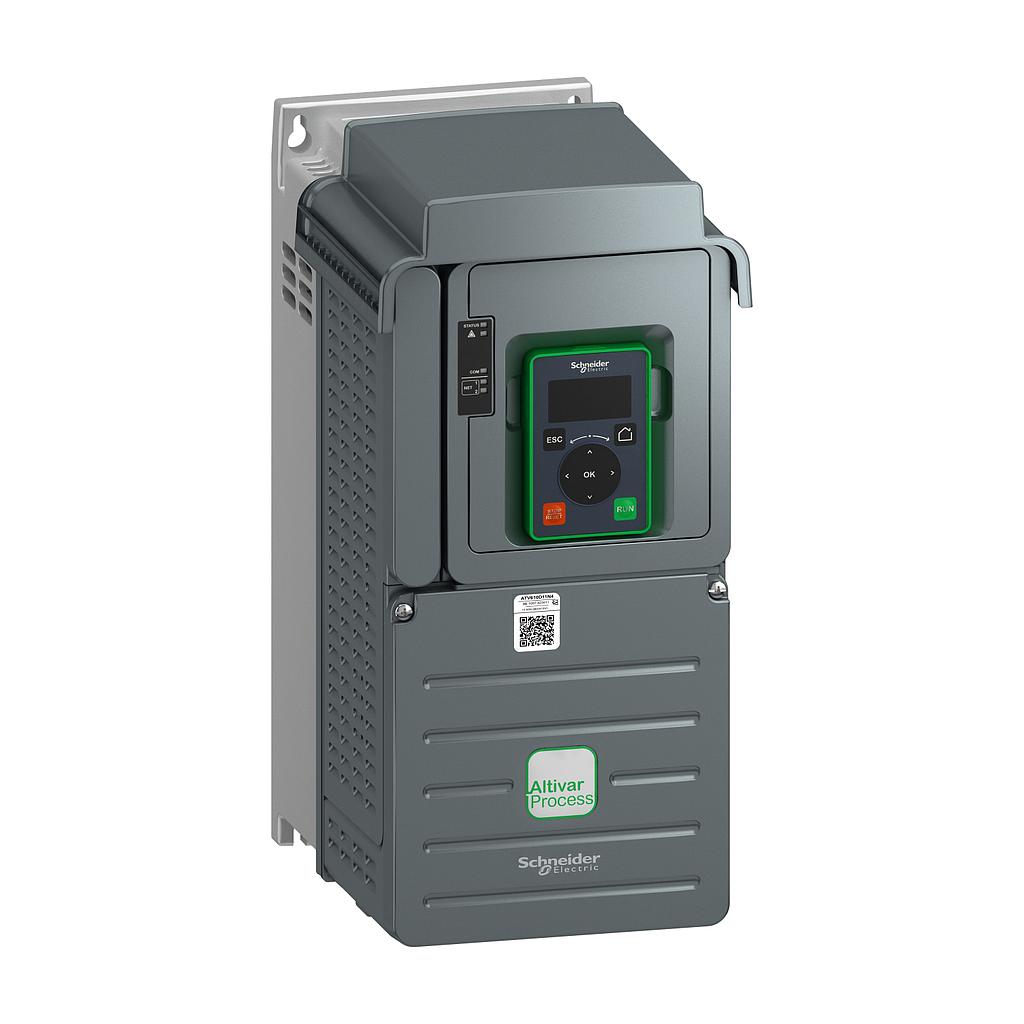

SCHNEIDER ATV610D11N4 Inverter

Range of product

Easy Altivar 610

Product or component type

Variable speed drive

Product specific application

Fan, pump, compressor, conveyor

Device short name

ATV610

Variant

Standard version

Product destination

Asynchronous motors

Synchronous motors

Mounting mode

Cabinet mount

EMC filter

Integrated conforming to IEC 61800-3 category C3 with 50 m

IP degree of protection

IP20

type of cooling

Forced convection

Supply frequency

50...60 Hz +/-5 %

Network number of phases

3 phases

[Us] rated supply voltage

380...460 V - 15...10 %

Motor power kW

11 kW for normal duty

7.5 kW for heavy duty

Motor power hp

15 hp for normal duty

10 hp for heavy duty

Line current

22 A at 380 V (normal duty)

19.6 A at 460 V (normal duty)

16.4 A at 380 V (heavy duty)

14.6 A at 460 V (heavy duty)

Prospective line Isc

22 kA

Apparent power

15.6 kVA at 460 V (normal duty)

11.6 kVA at 460 V (heavy duty)

Continuous output current

23.5 A at 4 kHz for normal duty

16.5 A at 4 kHz for heavy duty

Maximum transient current

25.9 A during 60 s (normal duty)

24.8 A during 60 s (heavy duty)

Asynchronous motor control profile

Constant torque standard

Optimized torque mode

Variable torque standard

Output frequency

0.1…500 Hz

Nominal switching frequency

4 kHz

Switching frequency

2...12 kHz adjustable

number of preset speeds

16 preset speeds

Communication port protocol

Modbus serial

Option card

Slot A: communication card, Profibus DP V1

Slot A: digital or analog I/O extension card

Slot A: relay output card

Complementary

Output voltage

<= power supply voltage

Motor slip compensation

Automatic whatever the load

Adjustable

Not available in permanent magnet motor law

Can be suppressed

Acceleration and deceleration ramps

S, U or customized

Linear adjustable separately from 0.01 to 9000 s

Braking to standstill

By DC injection

Protection type

Thermal protection: motor

Motor phase break: motor

Thermal protection: drive

Overheating: drive

Overcurrent between output phases and earth: drive

Overload of output voltage: drive

Short-circuit protection: drive

Motor phase break: drive

Overvoltages on the DC bus: drive

Line supply overvoltage: drive

Line supply undervoltage: drive

Line supply phase loss: drive

Overspeed: drive

Break on the control circuit: drive

Frequency resolution

Display unit: 0.1 Hz

Analog input: 0.012/50 Hz

Electrical connection

Control, screw terminal: 0.5...1.5 mm²

Line side, screw terminal: 4...16 mm²

Motor, screw terminal: 4...16 mm²

Connector type

1 RJ45 (on the remote graphic terminal) for Modbus serial

Physical interface

2-wire RS 485 for Modbus serial

Transmission frame

RTU for Modbus serial

Transmission rate

4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial

Type of polarization

No impedance for Modbus serial

Number of addresses

1…247 for Modbus serial

Method of access

Slave

Supply

External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection

Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection

Local signalling

2 LEDs for local diagnostic

1 LED (yellow) for embedded communication status

2 LEDs (dual colour) for communication module status

1 LED (red) for presence of voltage

width

171 mm

Height

360 mm

423 mm with EMC plate

Depth

233 mm

Net weight

7.730 kg

Analogue input number

3

Analogue input type

AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits

AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits

AI2, AI3 software-configurable temperature probe or water level sensor

Discrete input number

6

Discrete input type

DI1...DI6 programmable as logic input, 24 V DC (<= 30 V), impedance: 3.5 kOhm

DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)

Input compatibility

DI1...DI6: logic input level 1 PLC conforming to IEC 61131-2

DI5, DI6: pulse input level 1 PLC conforming to IEC 65A-68

Discrete input logic

Positive logic (source): DI1...DI6 configurable logic input, < 5 V (state 0), > 11 V (state 1)

Negative logic (sink): DI1...DI6 configurable logic input, > 16 V (state 0), < 10 V (state 1)

Positive logic (source): DI5, DI6 configurable pulse input, < 0.6 V (state 0), > 2.5 V (state 1)

Analogue output number

2

Analogue output type

Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits

Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits

Sampling duration

5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input

2 ms +/- 0.5 ms (DI1...DI6)configurable - discrete input

5 ms +/- 1 ms (DI5, DI6)configurable - pulse input

10 ms +/- 1 ms (AQ1, AQ2) - analog output

Accuracy

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input

+/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Linearity error

AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input

AQ1, AQ2: +/- 0.2 % for analog output

Relay output number

3

Relay output type

Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles

Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles

Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles

Refresh time

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

Minimum switching current

Relay output R1, R2, R3: 5 mA at 24 V DC

Maximum switching current

Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC

Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC

Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC

Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC

Isolation

Between power and control terminals

Insulation resistance

> 1 MOhm 500 V DC for 1 minute to earth

Environment

Noise level

56 dB conforming to 86/188/EEC

Power dissipation in W

310 W(forced convection) at 380 V, switching frequency 4 kHz

54 W(natural convection) at 380 V, switching frequency 4 kHz

Operating position

Vertical +/- 10 degree

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3

Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4

1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5

Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

Pollution degree

2 conforming to IEC 61800-5-1

Vibration resistance

1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6

1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Relative humidity

5…95 % without condensation conforming to IEC 60068-2-3

Ambient air temperature for operation

-15…45 °C (without derating)

45…60 °C (with derating factor)

Operating altitude

<= 1000 m without derating

1000...4800 m with current derating 1 % per 100 m

Environmental characteristic

Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3

Dust pollution resistance class 3S3 conforming to IEC 60721-3-3

Standards

IEC 61800-3

Environment 2 category C3 IEC 61800-3

IEC 61800-5-1

IEC 60721-3
