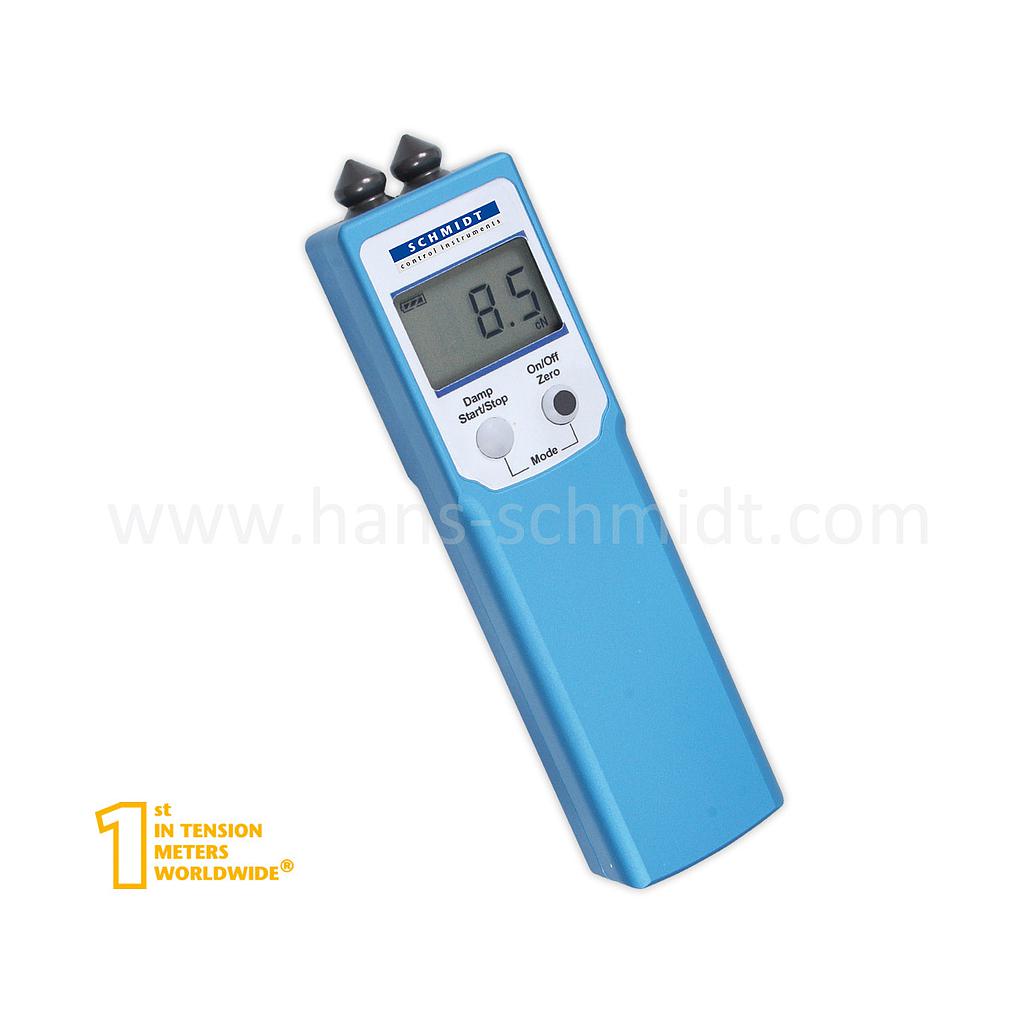

SCHMIDT PT-100 Tension Meter (0.5 – 100.0 cN)

Measuring Range Tension: 0.5 – 100.0 cN

Measuring Range Speed: —

Measuring Range Length: —

SCHMIDT Calibration Material*: PA: 0.20 mm Ø

Calibration: According SCHMIDT factory procedure

Accuracy: ±1.5 % full scale ±1 digit

Resolution: 0.1 cN

Overload protection: 200 % full scale

Measuring units: cN, gr switchable

Measuring principle: Strain gauge bridge

Damping: Adjustable electronic damping, averaging

Display: LCD 3 ½ digits, 9 mm high

Display update rate: 2 times per second

Auto power off: After 3 minutes off non use

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Power supply: LiPo accumulator (approx. 40 h contiunous use, charging time approx. 3.5 h), USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ)

Housing material: Aluminium

Dimensions: See dimensions

Weight, net (gross): Approx. 170 g (500 g)

* Suitable for 95 % of applications – PA = Polyamide Monofilament

Delivery Includes: carrying case, USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ), USB cable, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
