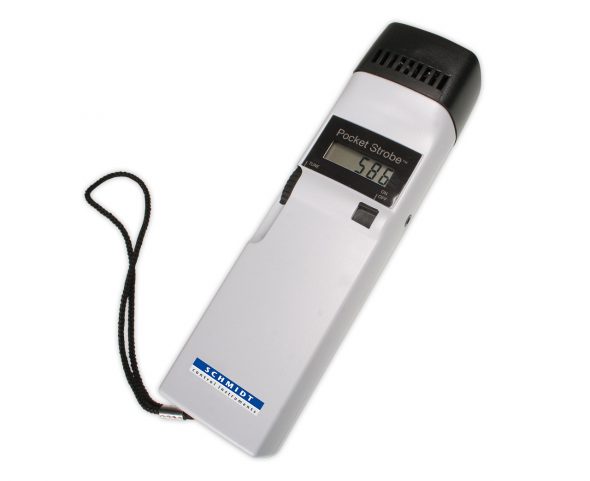

SCHMIDT MS-1 Stroboscope (0.5 - 208.3 Hz)

Flash range: 0.5 – 208.3 Hz = 30 – 12500 FPM (rpm)

Accuracy: ±0.01 % reading ±1 digit

Resolution: ±1 FPM

Light intensity: Approx. 1200 Lux at a distance of 20 cm, running with 4500 rpm

Flash duration: < 9 µs

Display: 5 digit LCD, 9 mm high

Flash tube: Xenon-Longlife (lifetime approx. 200 million flashes), energy of flash max. 170 mJ, Colours 6000…6500K

External trigger input: 0 – 5 V DTL/TTL compatible, Uout = 7.2 V unregulated, Ri = 100 kΩ 3.5 mm 1/8

Tripod fixing: 1/4” 20 internal thread

Power supply: Li-Ion-rechargeable battery (2 h continuous, charging time 5 h)

and/or AC adapter 100…240 V DC, 50/60 Hz

Temperature range: 0 – 40 °C

Air humidity: 85 % RH, max.

Housing material: ABS

Dimensions: 240 x 65 x 40 mm (LxWxH)

Weight net (gross): Approx. 420 g (1300 g)

Dimensions
