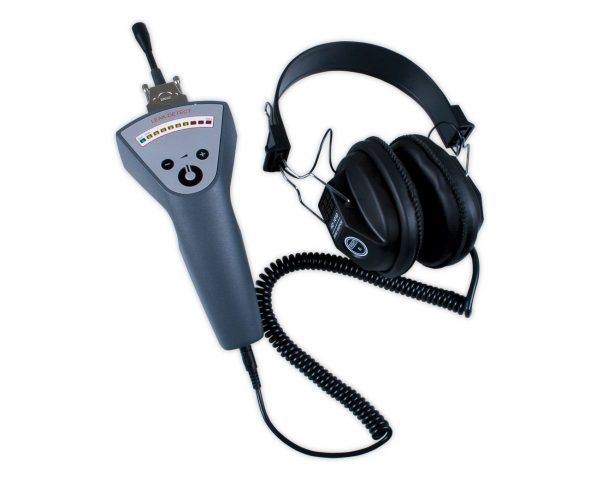

SCHMIDT LDT-1 Leak-Detect (>0.1 mm)

Measuring Range: Leakages with diameter bigger than 0.1 mm

Field of application: For leakages with diameter more than 0.1 mm and 1 bar pressure

Display: LED and acoustical

Power supply: 9 V battery or rechargeable battery

Housing: Plastic (ABS)

Dimensions: 180 x 90 x 70 mm

Weight: Device with probe 250 g / head phone 220 g; complete with carrying case: 1800 g

Delivery Includes: Leak-Detect LDT-1 with carrying case, 1 probe 110 mm, 1 headphone, 1 detection probe for small leakages < 0.1 mm, 1 battery, manufacturer`s calibration report and operating instruction in German or English (as requested)

Special Features

for pinpointing leakages in compressed-air systems, pneumatic systems, valves, fittings, steam pipelines, oxygen sockets in hospitals as well as checking internal sealing of e. g. cockpits, pressure chambers etc.

For leakages with more than Ø 0.1 mm. Pressure of 1 bar is recommended. For leakages with a diameter smaller than 0.1 mm, a higher pressure is recommended (e. g. 8 bar)

Measuring principle: Locating leakages by ultrasonic receiver

Leak-detect LDT-1 signal indication over headset and LED indicator

For leakages at hard to reach places a gooseneck (260 mm) or a ultrasonic parabolic reflector (up to distance of 20 m) are optional available

Manufacturer calibration certificate is optional available
