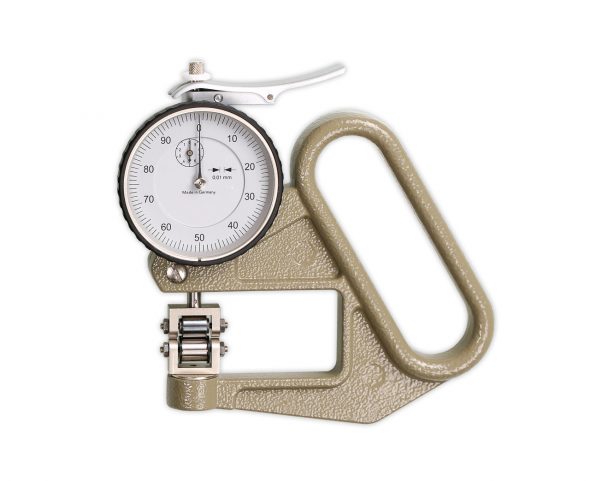

SCHMIDT J-50-RO Thickness Gauge with Rollers (5 mm)

Resolution: 0.01 mm

Measuring range: 5 mm

Depth of jaw: 50 mm

Scale diameter: 54 mm

Measuring principle: Self closing

Weight, net (gross): Approx. 300 g (350 g)

Special Features

Thickness gauge J-50-R features an easy to read analog display along with the high accuracy. It is used to measure the thickness of moving objects as yarns. wires and more.

For better guiding the measured material the lower roller (width 8.7 mm) is standard equipped with flanges, optional available without flange to measure to measure paper, metal, foils and more.

Max. Line speed 150 m/min

Measuring by spring force

Opening by lifting device (lever) – self closing thickness gauge J-50-R
