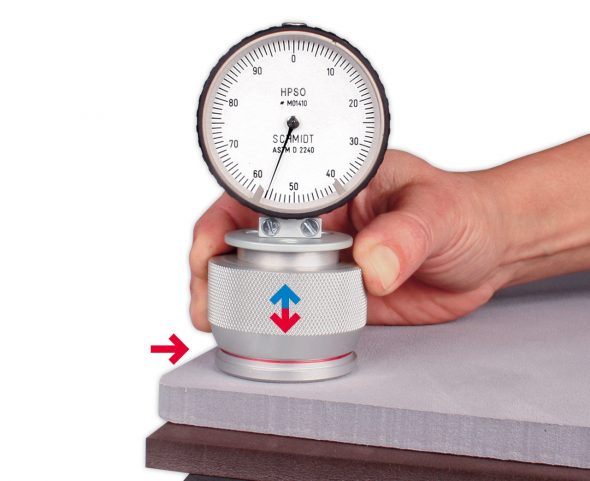

SCHMIDT HPSO Shore Durometer (20 – 80 Shore O)

Indentor: U-grooved 3/32”

Depth of indentation: 0 – 2.5 mm

Typical applications: Soft elastomers, soft elastic materials, medium fast textiles

Accuracy: ± 1 hardness unit

Application range: 20 – 80 Shore O

Standard: ASTM D 2240

Measuring spring force: 0.55 – 8.065 N

Test pressure*: Approx. 12,5 N

Display range: 0 – 100 Shore O units

Scale diameter: 54 mm

Working face: 18 mm Ø

Base plate: 45 mm Ø

Weight, net (gross): Approx. 300 g (approx. 500 g)

Dimensions: 50 x 58 x 113 mm (LxWxH)
