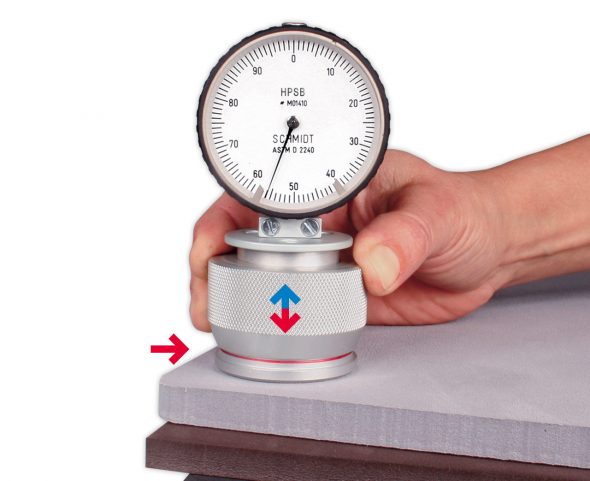

SCHMIDT HPSB Shore Durometer (10 – 90 Shore B)

Indentor: Tapered pin 30°, 1.25 mm Ø

Depth of indentation: 0 – 2.5 mm

Typical applications: For harder material than Shore A

Accuracy: ± 1 hardness unit

Application range: 10 – 90 Shore B

Standard: ASTM D 2240

Measuring spring force: 0.55 – 8.065 N

Test pressure*: Approx. 12.5 N

Display range: 0 – 100 Shore B units

Scale diameter: 54 mm

Working face: 18 mm Ø

Base plate: 45 mm Ø

Weight, net (gross): Approx. 300 g (approx. 500 g)

Dimensions: 50 x 58 x 114 mm (LxWxH)
