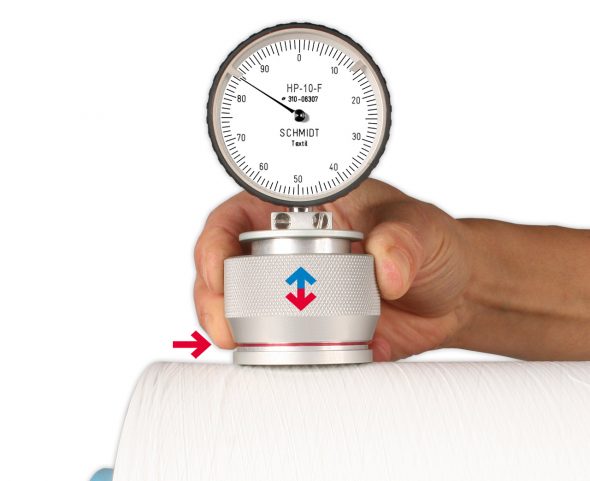

SCHMIDT HP-10-F Yarn Package Hardness Tester

Indentor: Ball Ø 10 mm

Area of application: For very loosely wound bobbins of thick yarns with more than 400 mm diameter, such as carpet yarns

Depth of indentation*: 0 – 2.5 mm

Test pressure**: Approx. 12.5 N

Measuring spring force*: 0.55 – 8.065 N

Display range: 0 – 100 hardness graduation marks

Scale diameter: 54 mm

Working face flat: 45 mm

Weight, net (gross): Approx. 300 g (500 g)

Dimensions: 50 x 58 x 110 mm (LxWxH)

* Meets requirements of Shore A

** Spring load of outer ring to create constant pressure when outer ring is pulled to red marking
