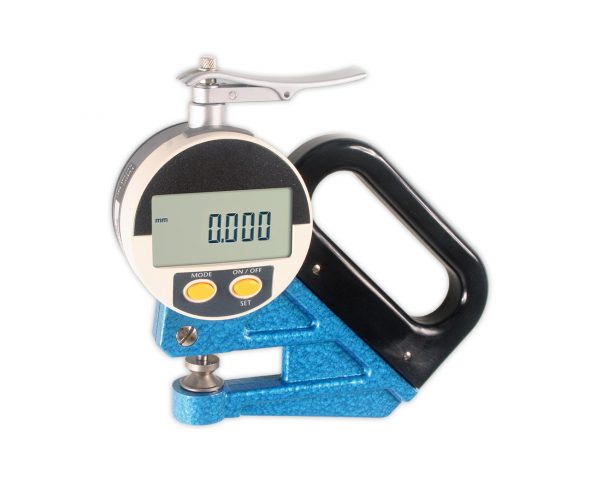

SCHMIDT FD-1000-30-3 Thickness Gauge (0 – 3 mm / 0 – 0.12 inch)

Resolution: 0.001 mm / 0.00005 inch

Measuring range: 0 – 3 mm / 0 – 0.12 inch

Depth of jaw: 30 mm

Measuring principle: Self closing

Feeler shape: F

Display: LCD 6 digit, 8.5 mm high

Measuring system: Capacitive (Sylvac)

Temperature range: 10 – 45 °C

Battery: 3 V Lithium, CR 2032

Data output: USB, RS-232, galvanic isolation

Weight, net (gross): Approx. 300 g (350 g)

Special Features

FD-1000-30-3 Thickness gauge  features an easy to read digital display along with the high accuracy

The thickness gauge is used for foils and thin materials with a resolution of 0.001 mm

The isolated handle ensures  highest accuracy (prevents transfer of the heat from the operator´s hand to the gauge)

The instrument is equiped with a feeler Ø 6.35 mm

Measuring by spring force

Thickness gauge opening by lifting device (lever) – self closing thickness gauge FD-1000-30-3

Output signal:

– USB

– RS 232
