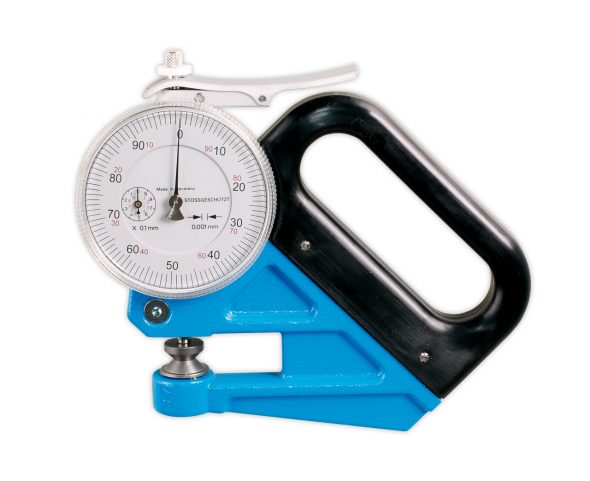

SCHMIDT F-1101-30 Thickness Gauge (0 - 1 mm)

Display: analog; turn of the dial is 0.2 mm

Resolution: 0.001 mm

Measuring range: 1 mm

Turn of the dial: 0.1 mm

Depth of jaw: 30 mm

Bezel diameter: 54 mm

Feeler shape: F

Measuring principle: Self closing

Weight, net (gross): Approx. 320 g (400 g)

Special Features

Thickness gauge  F-1101-30 features an easy to read analog display along with the high accuracy

The thickness gauge is used for foils and thin materials with a resolution of 0.001 mm; turn of the dial is 0.1 mm

The isolated handle ensures  highest accuracy (prevents transfer of the heat from the operators hand to the gauge)

The instrument is equipped with a feeler Ø 6.35 mm

Measuring by spring force

Opening by lifting device (lever) – self closing thickness gauge F-1101-30
