SCHMIDT eZT Force Gauge (0 - 20 kN; 0.5 - 10 Nm)

Measuring range available: 0 - 20 kN (tension and compression); 0.5 - 10 Nm (torque)

Measuring principle: Bidirectional force sensor with strain gauge

Accuracy: ±0.2 % full scale ±1 digit

Measuring units: N, kgf (gf), lbf (ozf) selectable

Display: OLED, 4 digit

Sampling rate: 2000 times/sec

Overload capacity: Approx. 200 % full scale, symbol flashes at 110 % full scale

Display update rate: 16 times/sec

Memory: Internal memory for max. 1000 values; recallable peak – compression/tension

Setpoints: Programmable Max/Min setpoint with colour-coded indicators in the LED display

Output signal setpoints: Open collector: +NG, OK, -NG, OVL (to stop feed at Fmax or overload)

Output signal: RS-232 (8, 1, N, 19200), analog ±2 V DC, USB

Temperature range: 0 – 40 °C

Air humidity: 20 – 80 % RH, max.

Power supply: Rechargeable NiMH batteries (approx. 6.5 h continuous use, approx. 2 h charging time) and/or 100 – 240 V AC adapter and two adapters (EU/USA)

Housing material: Die-cast aluminium

Dimensions: 191 x 75 x 34 mm (LxWxH)

Weight, net (gross): Approx. 450 g

Force-displacement measurement: In combination with a test stand with linear scale force-displacement measurements are possible

Memory: Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)

High low output: 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording

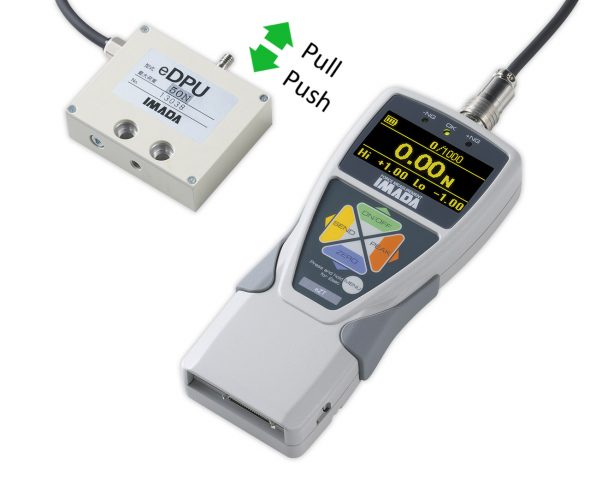

Delivery Includes: Indicator and separate force sensor with carrying case, AC adapter, USB connecting cable, 1 CD-ROM with USB-driver and simple software for data transfer, USB-adapter, operating instruction in English
