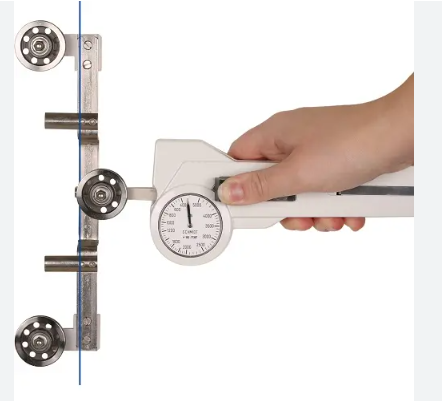

SCHMIDT DXL-5000 Tension Meter (400 – 5000 cN)

Measuring Range: 400 – 5000 cN

Measuring Head Width*: 235 mm

SCHMIDT Calibration Material: customer sample or Schmidt sample Ø 2.3 mm

Calibration: According to SCHMIDT factory procedure

Accuracy: ±1 % full scale or ±1 graduation on scale

Scale diameter: 41 mm

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Housing material: Die-cast aluminium

Dimensions: See Dimensions

Weight, net (gross) Approx. 640 g (1100 g)

Other tension ranges and measuring head widths are available on request.

Other units of measure available – g and kg.

* Outer distance between outside guide rollers

Delivery Includes: carrying case, operating instruction in German or English (as requested), Certificate of compliance with the order 2.1 according EN 10204 free of charge
