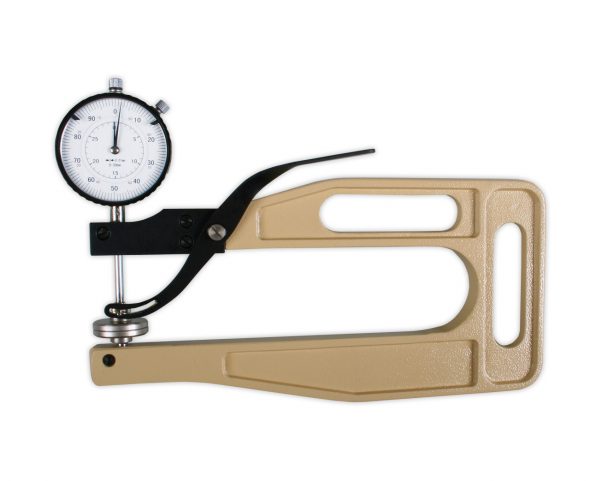

SCHMIDT DMH-820-1 Thickness Gauge (25 mm)

Resolution: 0.01 mm

Measuring range: 25 mm

Depth of jaw: 200 mm

Measuring pressure: 1 N

Feeler shape: A/B/C/G/H

Measuring principle: Self closing

Weight, net (gross): Approx. 700 g (750 g)

Special Features

Thickness gauge DMH-820-1 features an easy to read analog display along with the high accuracy

The thickness gauge is available with 5 different feelers, which can be found below

Measuring by spring force of 1 N

Opening by lifting device – self closing thickness gauge DMH-820-1Dickenmesser mit Abhebevorrichtung

Thickness gauge is optional available with big foot (Code F) for on table use
