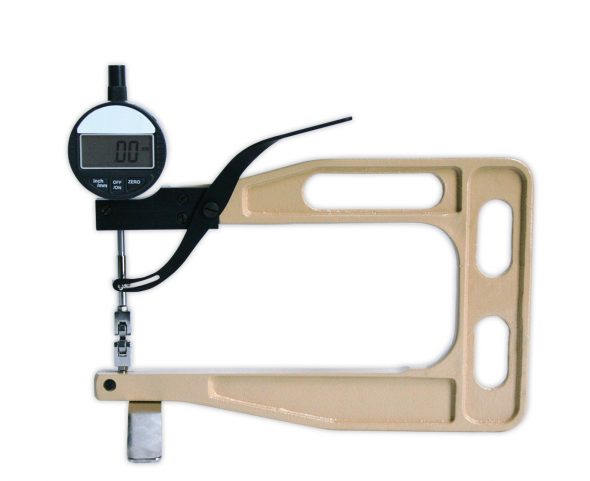

SCHMIDT DMD-820-1 Thickness Gauge (0 – 25 mm / 1 inch)

Resolution: 0.01 mm / 0.0005 inch

Measuring range: 0 – 25 mm / 1 inch

Depth of jaw: 200 mm

Measuring pressure: 2 N

Measuring principle: Self closing

Feeler shape: A/B/C/G/H

Display: LCD 4 digit, 8 mm high

Measuring system: Capacitive

Data output: USB

Weight, net (gross): Approx. 700 g (750 g)

Special Features

Thickness gauge DMD-820-1 features an easy to read digital display along with the high accuracy

The thickness gauge is available with 5 different feelers, which can be found below

Measuring by spring force approx. 2 N

Opening by lifting device (lever) – self closing thickness gauge DMD-820-1

The thickness gauge is optional available with a foot (Code F) for on table use

Output signal: USB
