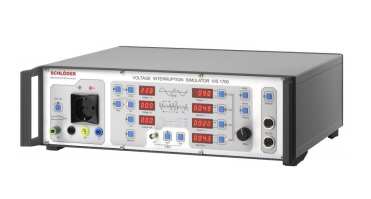

Schloeder VIS 1700 Voltage interruption simulator (360 VDC, 280VAC, 16A)

Nominal voltage AC: max. 280 V

Nominal voltage DC: max. 360 V

Nominal currents

Voltage dips AC/DC: max. 16 A / 8 A

Nominal currents

Voltage fluctuation:AC/DC max. 16 A / 8 A (with second power source!)

Nominal currents

Voltage fluctuation

AC/DC max. 16

Phase angle: φ = 0 - 359°, step 1°

Duration: t1 0,1 ms - 9980 ms

Period t2: synchronous: 5,0 ms - 9990 ms

sync: 20 ms - 9980 ms

Test time: 0,1 sec - 9990 sec, single event and duration

Interface: RS-232

Connections: BNC (voltage, current and trigger)

Test sample connection: Schuko socket additional laboratory sockets

Phase display: LED red; LED green

Operating temperature: 0 - 40° C

Dimensions: 19" housing (3 RU)

Weight: 13 kg

Supply voltage: 100-240 V / 47-63 Hz /80 VA

Datasheet

Options

VIS 740 Step transformer 16 A for voltage fluctuation

VIS 760 Diode in a housing, for DC mode with high impedance
