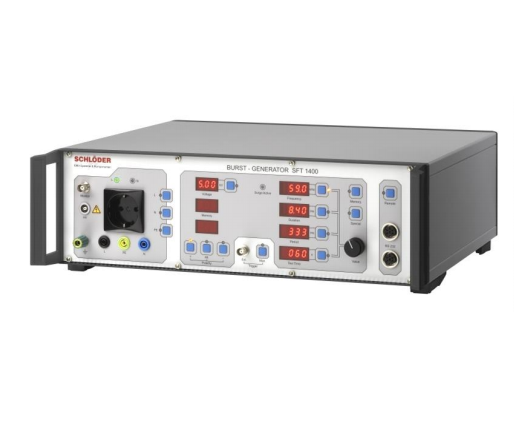

Schloeder SFT 1400 Burst Generator (125 kHz; 5000V)

Burst Generator

Burst frequency: Single pulse up to 125 kHz

Pulse voltage: 100 V - 5000 V

Polarity burst packet: pos., neg., alternating

Pulse shape: acc. to IEC 61000-4-4

Max. pulses / sec:

5000 (up to 2 kV)

3000 (up to 3 kV)

1500 (up to 5 kV)

Max. pulse / packet: 500

Interface: RS 232

Operating temperature: 0 - 40 °C

Dimensions: 19" housing (3 RU)

Weight: 9 kg

Supply voltage: 100-240 V / 47-63 Hz

Internal single-phase coupling network

Nominal voltage AC: max. 230 V / 16 A, 50 Hz

Nominal voltage DC: max. 110 V / 8 A

Phase display: LED red; LED green

Coupling capacity: 33 nF

Coupling switch: L, N, PE -> E/ L, N -> E; etc.

Test sample connection: Schuko socket, additional laboratory sockets

High voltage output: FISCHER HV-socket

Options

CWG 520 3-ph. coupling network 4 x 16 A, burst and surge

CWG 523 3-ph. coupling network 4 x 32 A, burst and surge

CWG 524 3-ph. coupling network 4 x 60 A, burst and surge

CWG 524-B 3-ph. coupling network 4 x 60 A, burst

SFT 470 probe set for magnetic field

SFT 415 coupling clamp

SFT 415-1 capacitive coupling clamp with hood

SFT 430 HV cable for coupling clamp 1 m

SFT 415-CS calibration set coupling clamp

SFT 450-1 50 Ω attenuator, divider 500:1

SFT 450-2 1000 Ω attenuator, divider 1000:1

SFT 450-Set 50 + 1000 Ω attenuators, necessary for independent verification of the

burst impulse at the generator or coupling clamp SFT 415

ZUB LWL OPTO optical interface with 10 m LWL

EMV-SOFT control software for burst etc.
