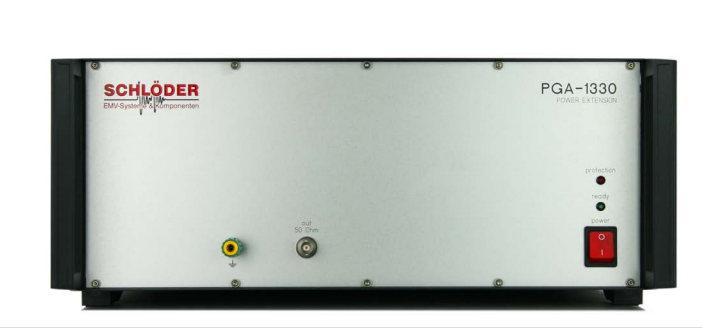

Schloeder PGA-1330 Immunity generator (1800 W)

Output frequencies: DC, 16 2/3 Hz, 50 Hz, 60 Hz

Output power: 1800 W (<= 10 s)

Output voltage

AC 10 V - 300 V

DC ±10 V - ±300 V

Distortion: < 5 %

Nominal impedance: 50 Ohm

Frequency accuracy: 50 ppm

Output voltage accuracy: 5 %

Protection: Over-heating protection

Connector (output) BNC

Connection to computer USB (B)

Connection to immunity generator USB (A)

Room temperature: 0 to 40 °C

Cooling Temperature controlled fans

Supply voltage: 230 VAC, 50-60 Hz,110/127VAC upon request

Housing 19" desktop case

Dimension (W / H / D) 449 mm / 177 mm / 580 mm

Weight ca. 40 kg
